TOYOTA CAMRY AUSTRALIA ACV36R-DEPVKQ / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

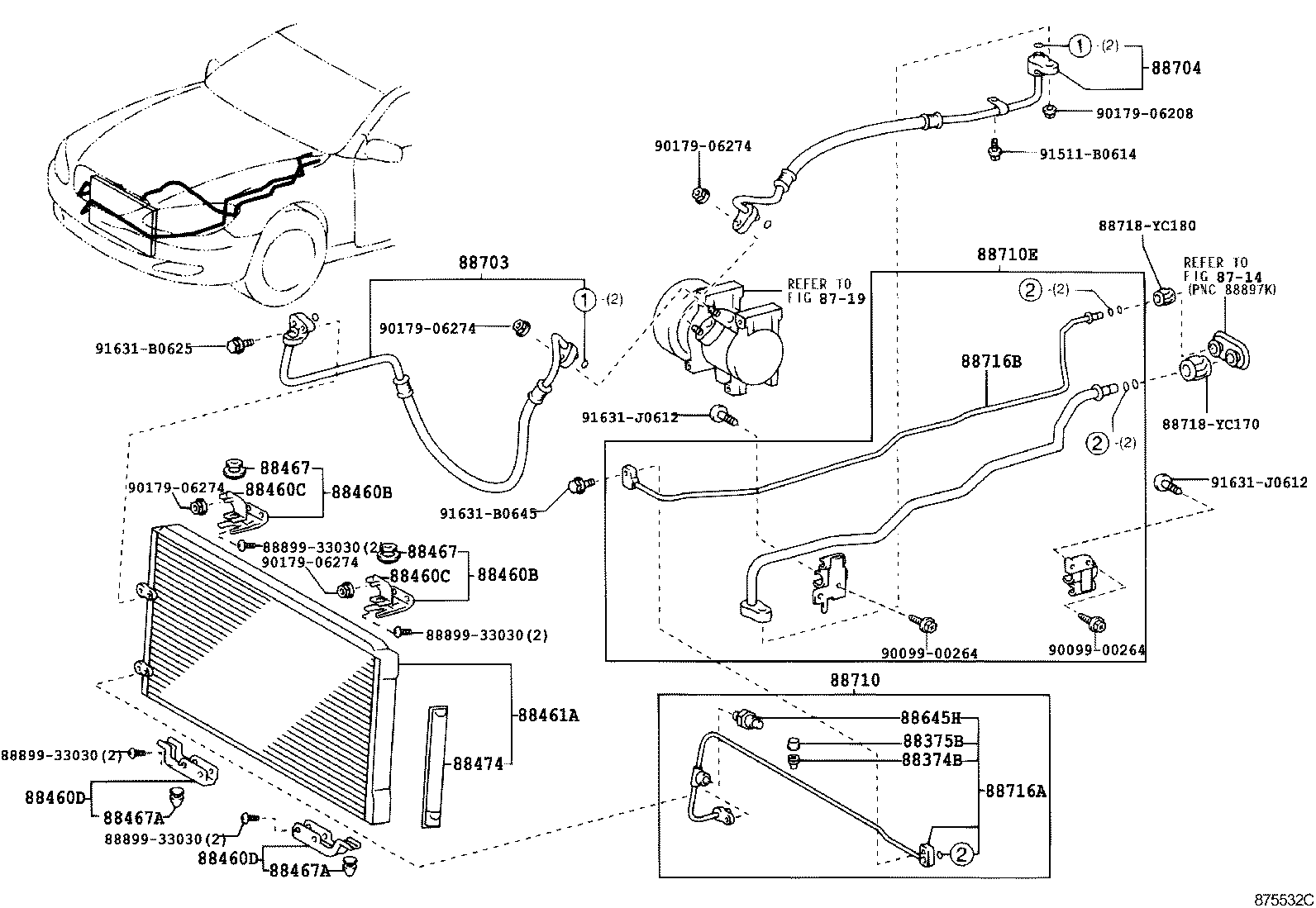

ILLUST NO. 1 OF 2(0208-0408)ARL

 CAMRY AUSTRALIA |  HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88375B - CAP, SERVICE VALVE, NO.1 88460B - BRACKET, COOLER CONDENSER, NO.1 88460B - BRACKET, COOLER CONDENSER, NO.1 88460C - BRACKET, COOLER CONDENSER, NO.2 88460C - BRACKET, COOLER CONDENSER, NO.2 88460D - BRACKET, COOLER CONDENSER, NO.3 88460D - BRACKET, COOLER CONDENSER, NO.3 88461A - CORE, COOLER CONDENSER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467A - CUSHION, COOLER CONDENSER, NO.2 88467A - CUSHION, COOLER CONDENSER, NO.2 88474 - DRYER, COOLER 88645H - SWITCH, PRESSURE NO.1 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88710 - TUBE ASSY, AIRCONDITIONER 88710E - TUBE & ACCESSORY ASSY, AIRCONDITIONER 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
