TOYOTA TOWNACE LITEACE SR40R-GRMRK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

VINJTEBH3FJ905012116
Build Date09/2010
ModelKDJ150L-GKAEYW
Specification LEFT-HAND DRIVE VEHICLES
MarketEU EUROPE
Engine1KDFTV 3000CC DIESEL TURBO
Fuel system5D 5-DOOR
TransimissionATM AUTOMATIC TRANSMISSION
Gear Shift Type5FC ATM, 5-SPEED FLOOR SHIFT
Frame NumberKDJ150-5012116
Color Code202 Black
Trim CodeFE10

Toyota - LEXUS genuine parts

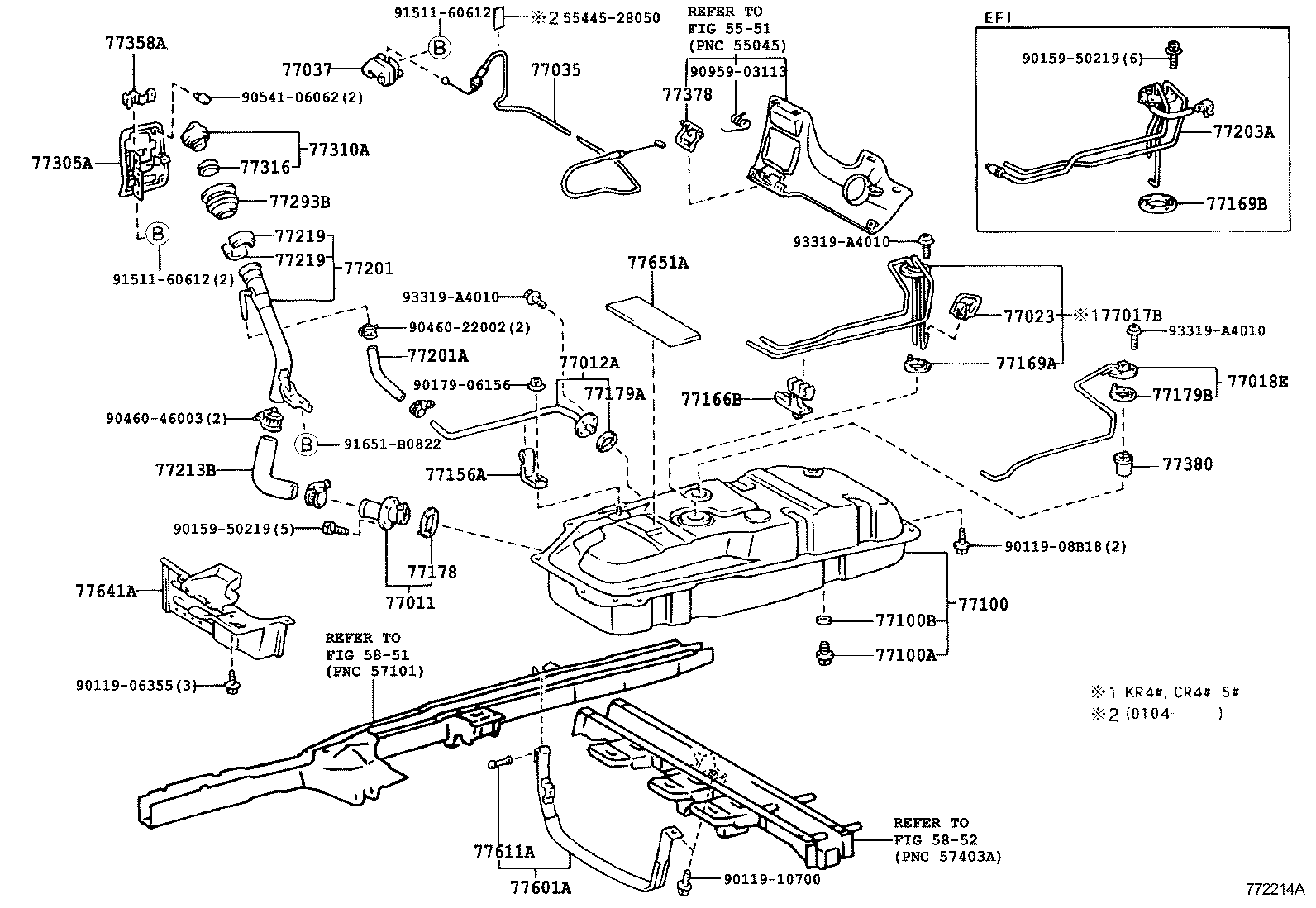

FUEL TANK TUBE

ILLUST NO. 1 OF 2(9812- )

TOWNACE LITEACE | FUEL TANK TUBE ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77156A - PLATE, BREATHER TUBE SUPPORT, NO.2 77166B - SUPPORT, FUEL TANK VENT TUBE, NO.1 77169A - GASKET, FUEL SUCTION TUBE SET 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179A - GASKET, FUEL TANK BREATHER TUBE 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) 77203A - TUBE SUB-ASSY, FUEL SUCTION 77213B - HOSE, FUEL TANK TO FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77293B - PACKING, FUEL INLET PIPE LOWER SHIELD PLATE 77305A - LID SUB-ASSY, FUEL FILLER OPENING 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77358A - STOPPER, FUEL FILLER OPENING LID 77378 - LEVER, FUEL FILLER LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77611A - PIN (FOR FUEL TANK BAND) 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
