TOYOTA LITEACE VAN WAGON YR21LG-MDS / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(9201- )YR21

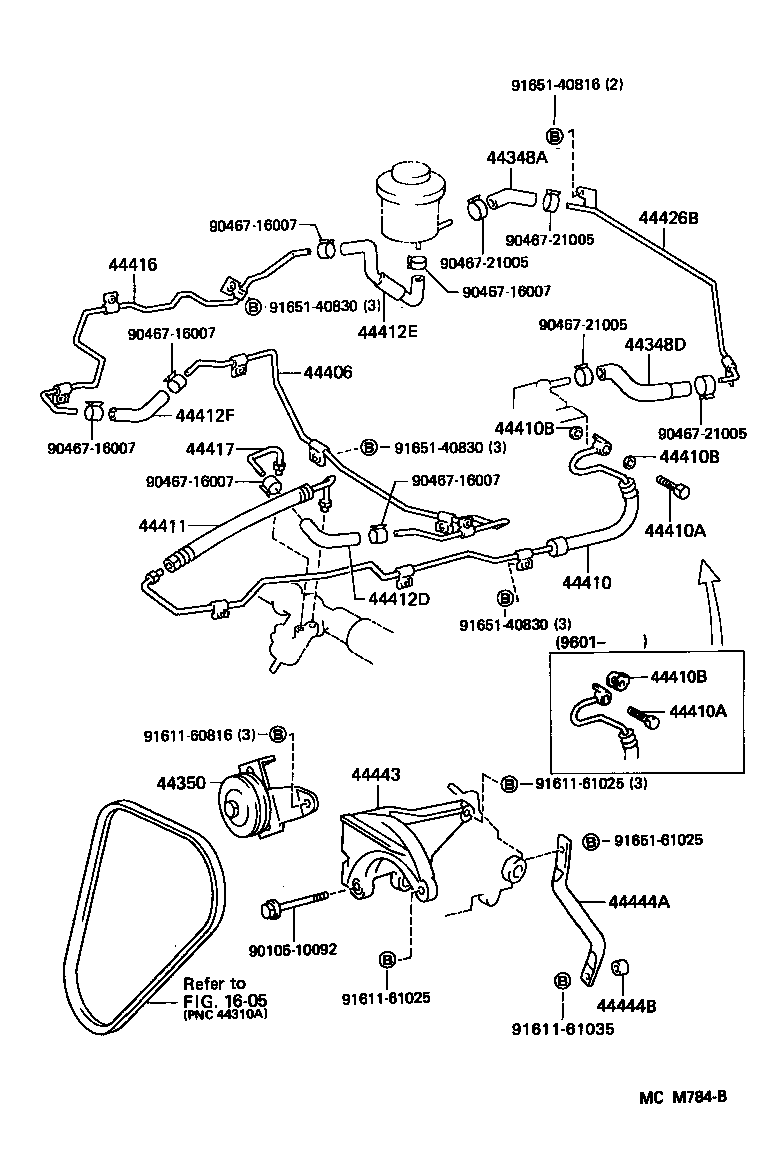

LITEACE VAN WAGON | POWER STEERING TUBE ** Refer Fig 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 44350 - PULLEY ASSY, POWER STEERING IDLE 44406 - TUBE SUB-ASSY, RETURN 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44411 - HOSE, PRESSURE FEED 44412D - HOSE, RETURN, NO.1 44412E - HOSE, RETURN, NO.2 44412F - HOSE, RETURN, NO.3 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44417 - TUBE, RETURN, NO.2 44426B - TUBE, OIL RESERVOIR TO PUMP 44443 - BRACKET, PUMP 44444A - STAY, PUMP, REAR NO.1 44444B - COLLAR (FOR PUMP REAR STAY) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
