TOYOTA CROWN JZS155R-ATPQF / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

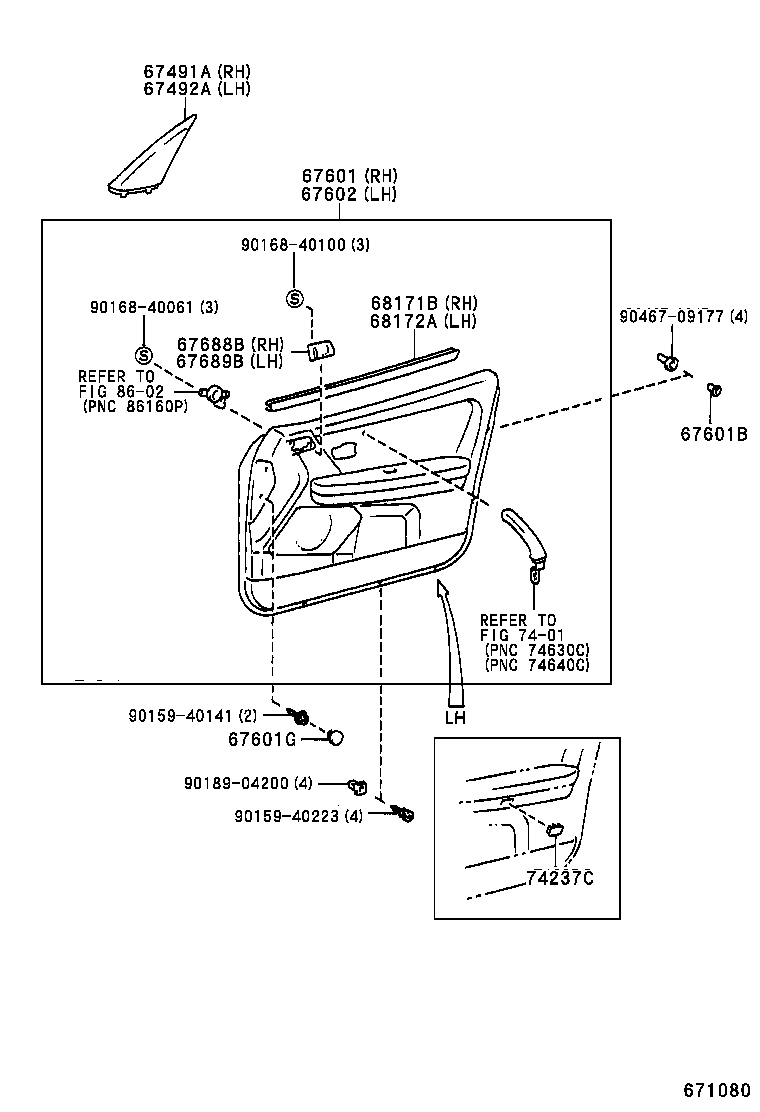

FRONT DOOR PANEL GLASS

ILLUST NO. 1 OF 3(9707- )HT

CROWN | FRONT DOOR PANEL GLASS 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67688B - GRILLE, SPEAKER DOOR, NO.2 RH 67689B - GRILLE, SPEAKER DOOR, NO.2 LH 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH ** Refer Fig 74237C - CAP, FRONT DOOR ARMREST BASE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
