TOYOTA STARLET EP82-AGPSK / POWERTRAIN-CHASSIS / OVERDRIVE GEAR ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

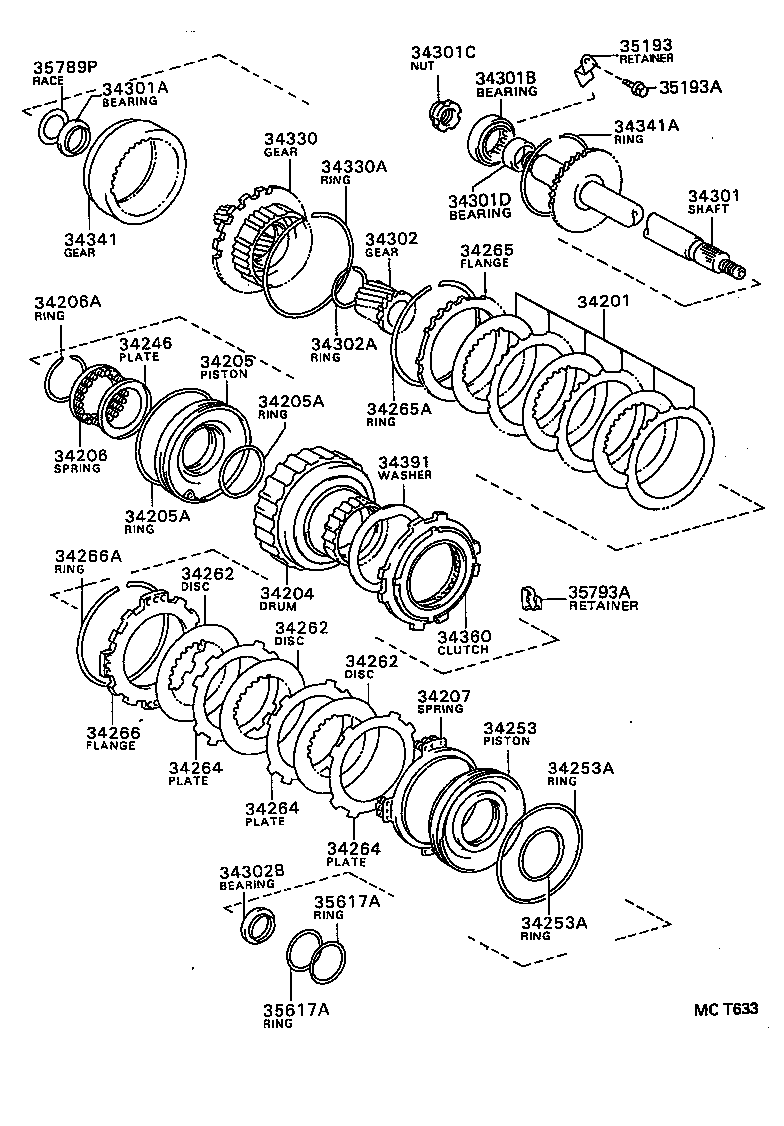

OVERDRIVE GEAR ATM

(9204-9601)4FC

 STARLET |  OVERDRIVE GEAR ATM 34201 - DISC SET, UNDERDRIVE CLUTCH 34204 - DRUM SUB-ASSY, UNDERDRIVE CLUTCH 34205 - PISTON SUB-ASSY, UNDERDRIVE CLUTCH 34205A - RING, O (FOR UNDERDRIVE CLUTCH PISTON) 34205A - RING, O (FOR UNDERDRIVE CLUTCH PISTON) 34206 - SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN 34206A - RING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING) 34207 - SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN 34246 - PLATE, UNDERDRIVE CLUTCH RETURN SPRING 34253 - PISTON, UNDERDRIVE BRAKE 34253A - RING, O (FOR UNDERDRIVE BRAKE PISTON) 34253A - RING, O (FOR UNDERDRIVE BRAKE PISTON) 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 34265 - FLANGE, UNDERDRIVE CLUTCH, NO.1 34265A - RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1) 34266 - FLANGE, UNDERDRIVE CLUTCH, NO.2 34266A - RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2) 34301 - SHAFT SUB-ASSY, UNDERDRIVE INPUT 34301A - BEARING, NEEDLE ROLLER (FOR UNDERDRIVE INPUT SHAFT) 34301B - BEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE) 34301C - NUT (FOR UNDERDRIVE INPUT SHAFT) 34301D - BEARING, CYLINDRICAL ROLLER, NO.2 (FOR UNDERDRIVE) 34302 - GEAR SUB-ASSY, UNDERDRIVE PLANETARY SUN 34302A - RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY SUN GEAR) 34302B - BEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR) 34330 - GEAR ASSY, UNDERDRIVE PLANETARY 34330A - RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY GEAR) 34341 - GEAR, UNDERDRIVE PLANETARY RING 34341A - RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING) 34360 - CLUTCH ASSY, UNDERDRIVE 1 WAY 34391 - WASHER, UNDERDRIVE CLUTCH DRUM THRUST 35193 - RETAINER, ROLLER BEARING 35193A - BOLT (FOR ROLLER BEARING RETAINER) 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) 35789P - RACE, THRUST BEARING (FOR UNDERDRIVE INPUT SHAFT) 35793A - RETAINER, UNDERDRIVE 1 WAY CLUTCH
