TOYOTA SOLUNA AL50R-AEMDK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

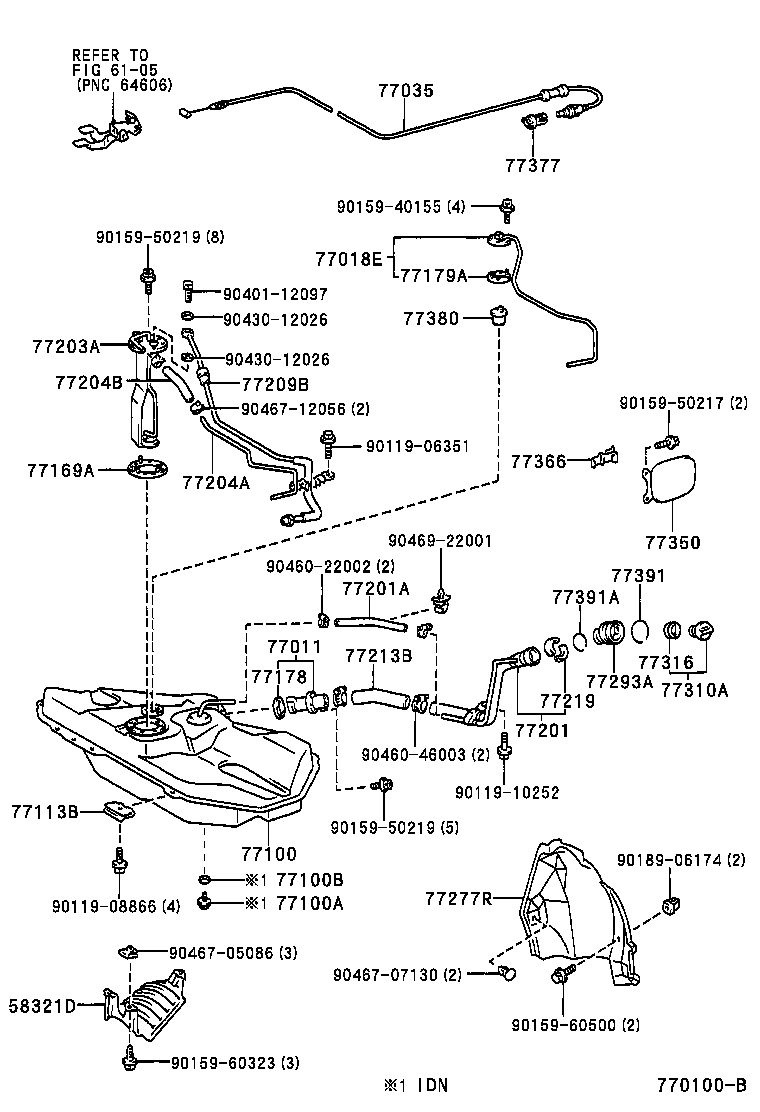

FUEL TANK TUBE

ILLUST NO. 1 OF 2(9612- )

 SOLUNA |  FUEL TANK TUBE 58321D - INSULATOR, REAR FLOOR HEAT, NO.1 ** Refer Fig 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77113B - PLATE, FUEL TANK SIDE 77169A - GASKET, FUEL SUCTION TUBE SET 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179A - GASKET, FUEL TANK BREATHER TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) 77203A - TUBE SUB-ASSY, FUEL SUCTION 77204A - TUBE, FUEL TANK RETURN 77204B - HOSE, FUEL(FOR FUEL RETURN) 77209B - TUBE SUB-ASSY, FUEL PUMP 77213B - HOSE, FUEL TANK TO FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
