TOYOTA SOLUNA AL50R-AEMDK / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

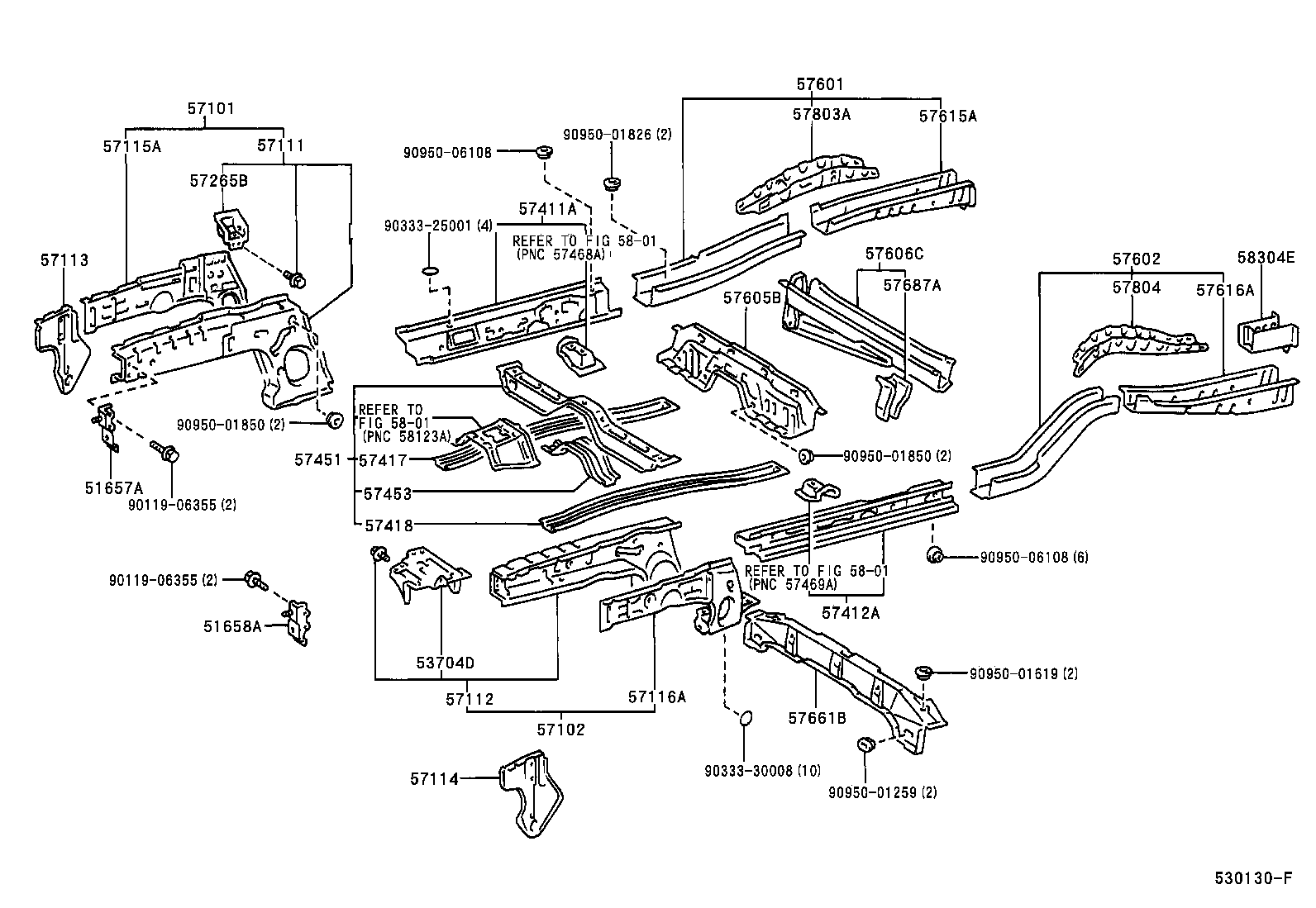

FLOOR SIDE MEMBER

(9612- )

 SOLUNA |  FLOOR SIDE MEMBER 51657A - BRACKET, FRONT BUMPER ARM, RH 51658A - BRACKET, FRONT BUMPER ARM, LH 53704D - SUPPORT SUB-ASSY, BATTERY, LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57265B - BRACKET, ENGINE MOUNTING, RH 57411A - MEMBER, FLOOR SIDE, INNER RH 57412A - MEMBER, FLOOR SIDE, INNER LH 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH 57451 - MEMBER, FRONT FLOOR CROSS 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57615A - MEMBER, REAR FLOOR SIDE, REAR RH 57616A - MEMBER, REAR FLOOR SIDE, REAR LH 57661B - MEMBER, REAR FLOOR CROSS, FRONT 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH ** Refer Fig ** Refer Fig ** Refer Fig 58304E - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
