TOYOTA HILUX 4RUNNER 4WD YN106L-PRMRS / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

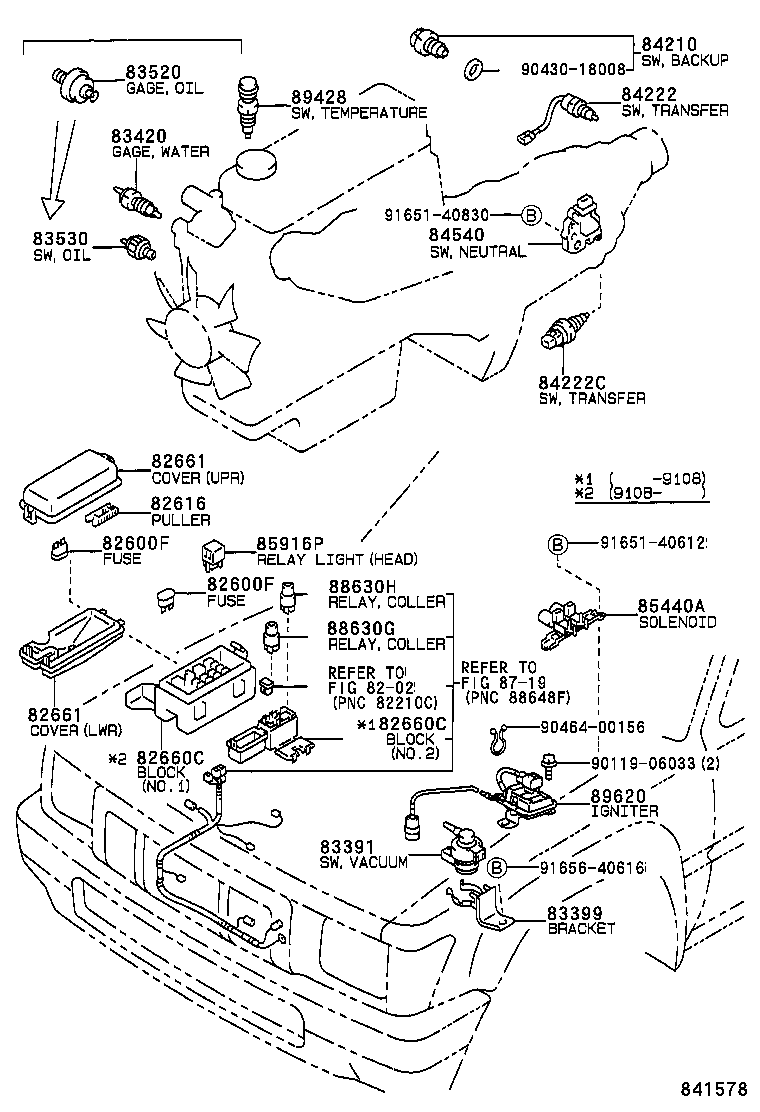

ENGINE & ENGINE ROOM ILLUST NO. 1 OF 4(8808- )YN106,13#

 HILUX 4RUNNER 4WD |  SWITCH RELAY COMPUTER ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82660C - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82661 - COVER, RELAY BLOCK, NO.1 83391 - SWITCH, VACUUM 83399 - BRACKET, VACUUM SWITCH 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83520 - GAGE ASSY,OIL PRESSURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84222 - SWITCH, TRANSFER INDICATOR, NO.1 84222C - SWITCH, TRANSFER INDICATOR, NO.3 84540 - SWITCH ASSY, NEUTRAL START 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL 85916P - RELAY, HEADLAMP ** Refer Fig 88630G - RELAY ASSY, COOLER 88630H - RELAY ASSY, COOLER 89428 - SWITCH, TEMPERATURE DETECT, NO.2 89620 - IGNITER ASSY  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
