TOYOTA LITEACE VAN WAGON CR27RV-MR / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

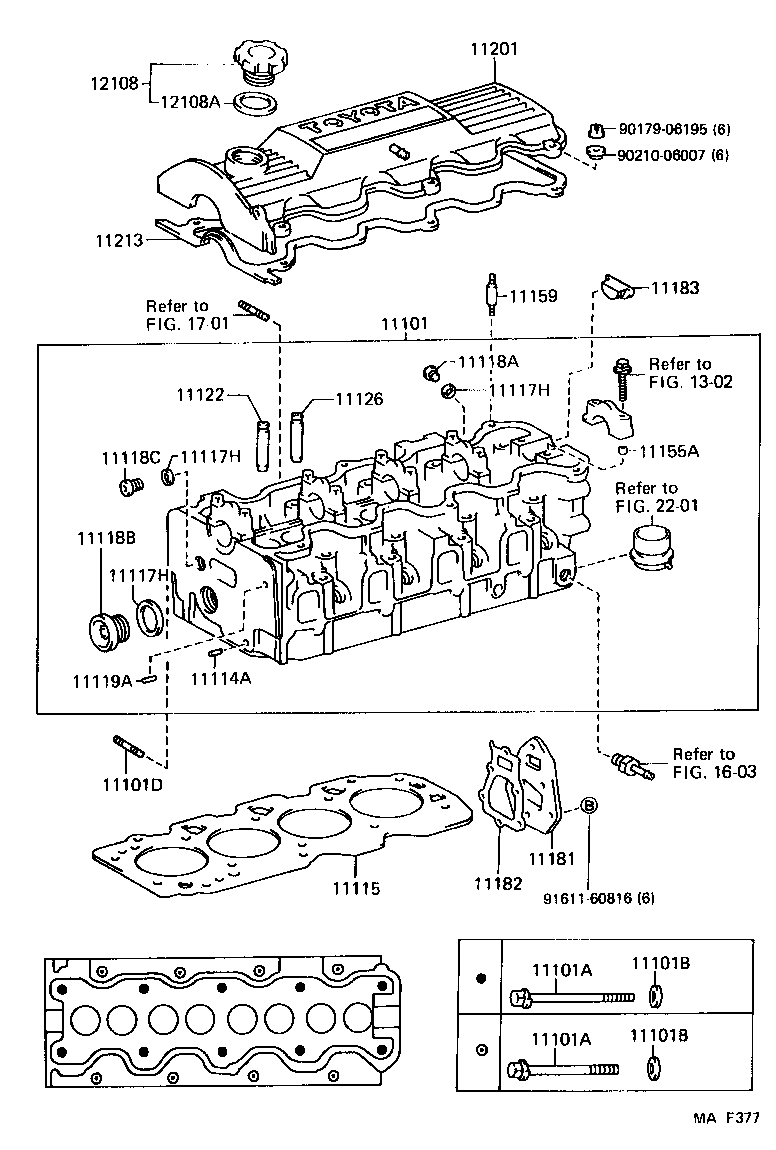

CYLINDER HEAD

(9201-9309)2C

 LITEACE VAN WAGON |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101D - BOLT, STUD(FOR WATER OUTLET) 11114A - PIN, STRAIGHT 11115 - GASKET, CYLINDER HEAD 11117H - GASKET(FOR WATER HOLE) 11117H - GASKET(FOR WATER HOLE) 11117H - GASKET(FOR WATER HOLE) 11118A - PLUG, STRAIGHT, NO.1 11118B - PLUG, STRAIGHT, NO.2 11118C - PLUG, STRAIGHT, NO.3 11119A - PIN, STRAIGHT, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11155A - PIN, RING W/HEAD 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) 11181 - PLATE, CYLINDER HEAD, REAR 11182 - GASKET, CYLINDER HEAD REAR PLATE 11183 - PLUG, SEMICIRCULAR 11201 - COVER SUB-ASSY, CYLINDER HEAD 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part
