TOYOTA HILUX 4RUNNER 4WD VZN130R-GKPSEQ / POWERTRAIN-CHASSIS / THROTTLE LINK VALVE LEVER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

THROTTLE LINK VALVE LEVER ATM

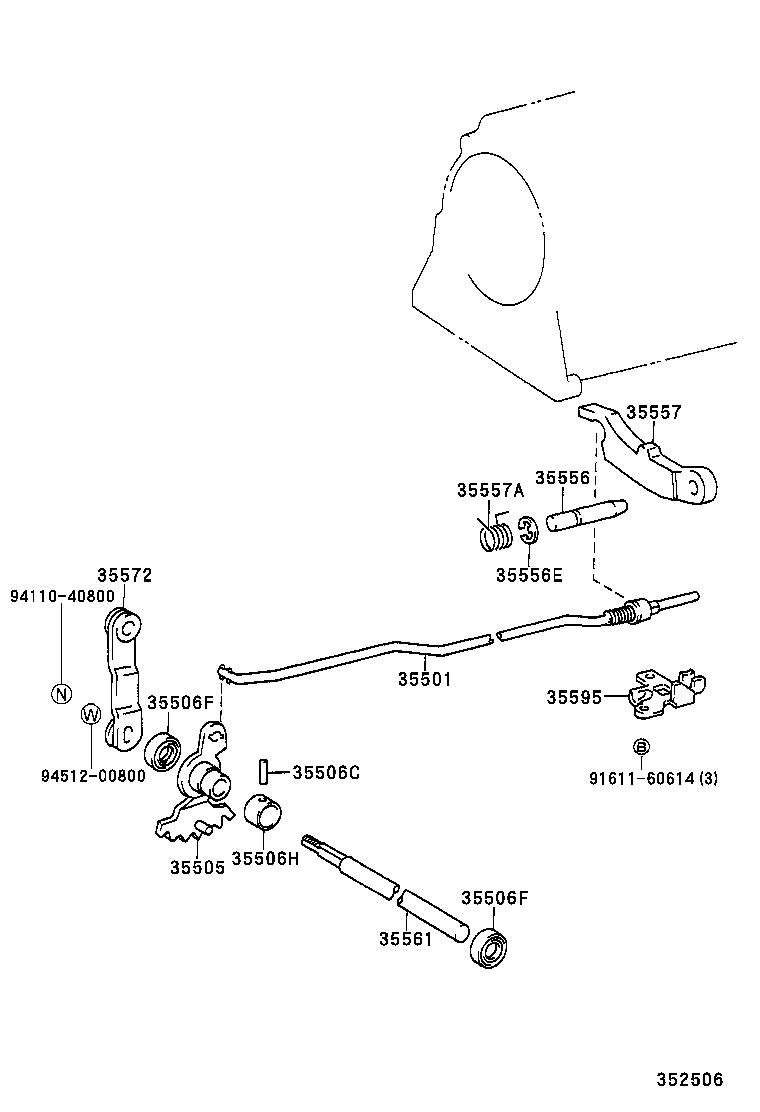

ILLUST NO. 1 OF 2(8908-9511)4FC

 HILUX 4RUNNER 4WD |  THROTTLE LINK VALVE LEVER ATM 35501 - ROD SUB-ASSY, PARKING LOCK 35505 - LEVER SUB-ASSY, MANUAL VALVE 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) 35556 - SHAFT, PARKING LOCK PAWL 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) 35557 - PAWL, PARKING LOCK 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) 35561 - SHAFT, MANUAL VALVE LEVER 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH 35595 - BRACKET, PARKING LOCK PAWL  ** Std Part  ** Std Part  ** Std Part
