TOYOTA HILUX 4RUNNER 4WD VZN130R-GKPSEQ / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SHIFT LEVER RETAINER

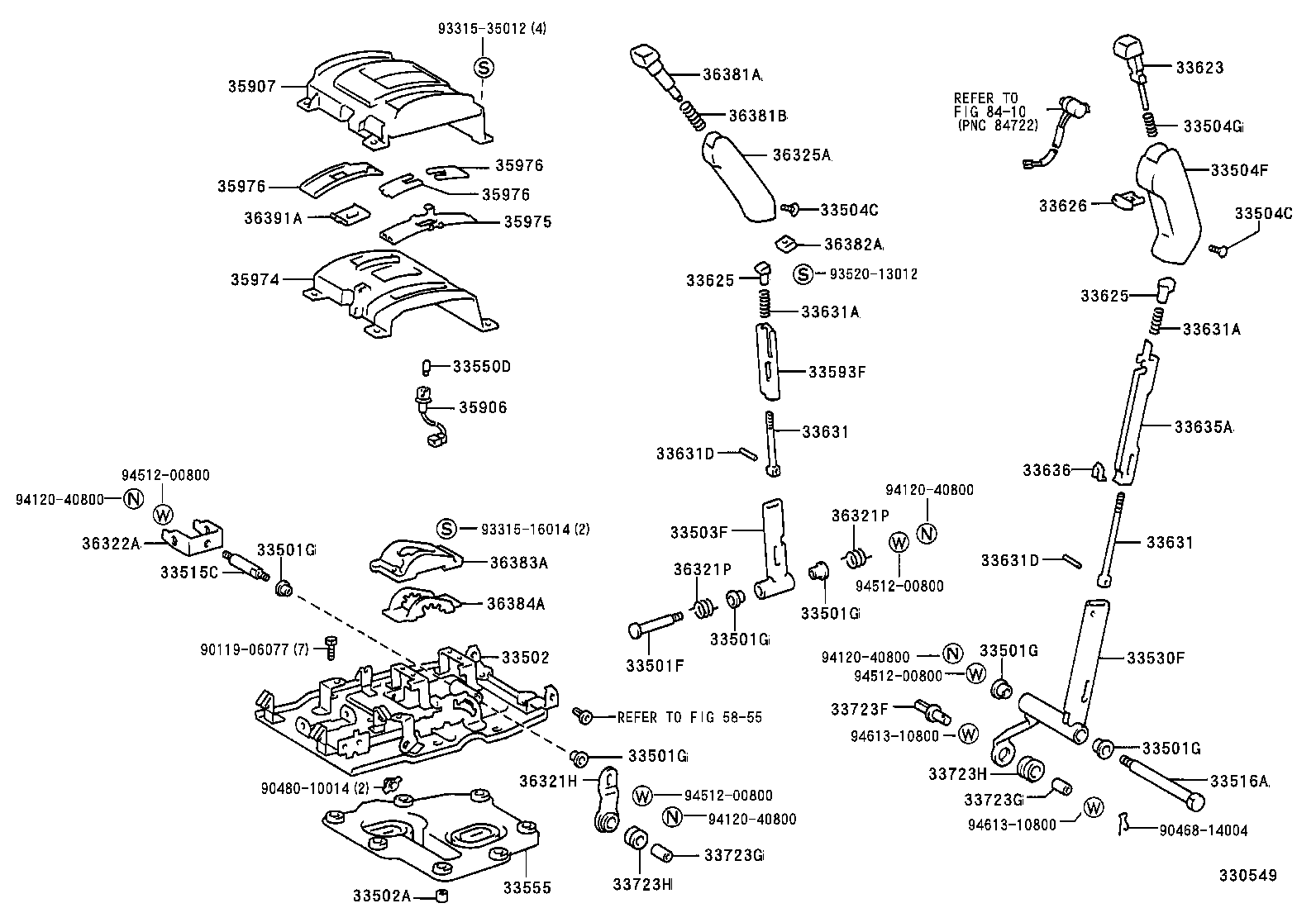

ILLUST NO. 1 OF 2(8908-9511)4FC

HILUX 4RUNNER 4WD | SHIFT LEVER RETAINER 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33502 - PLATE SUB-ASSY, SHIFT LEVER 33502A - COLLAR (FOR FLOOR SHIFT SETTING) 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33504G - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB) 33515C - SHAFT, CONTROL, NO.2 33516A - SHAFT, CONTROL, NO.3 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) 33550D - BULB, POSITION INDICATOR LAMP 33555 - BOOT, SHIFT LEVER 33593F - HOLDER, SPRING (FOR FLOOR SHIFT) 33623 - BUTTON, SHIFT LEVER KNOB 33625 - SLEEVE, SHIFT LEVER KNOB 33625 - SLEEVE, SHIFT LEVER KNOB 33626 - STOPPER, SHIFT LEVER BUTTON 33631 - ROD, DETENT 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) 36321H - LEVER, TRANSFER SHIFT 36321P - SPRING (FOR TRANSFER SHIFT LEVER) 36321P - SPRING (FOR TRANSFER SHIFT LEVER) 36322A - LEVER, TRANSFER SHIFT, NO.2 36325A - KNOB, LEVER, NO.2 36381A - BUTTON, TRANSFER SHIFT LEVER KNOB 36381B - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB) 36382A - STOPPER, TRANSFER SHIFT LEVER BUTTON 36383A - SUPPORT, TRANSFER DETENT BLOCK 36384A - BLOCK, TRANSFER DETENT 36391A - COVER, TRANSFER SLIDE ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
