TOYOTA PASEO EL44R-DCPSKQ / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR AXLE SHAFT HUB

(9104- )

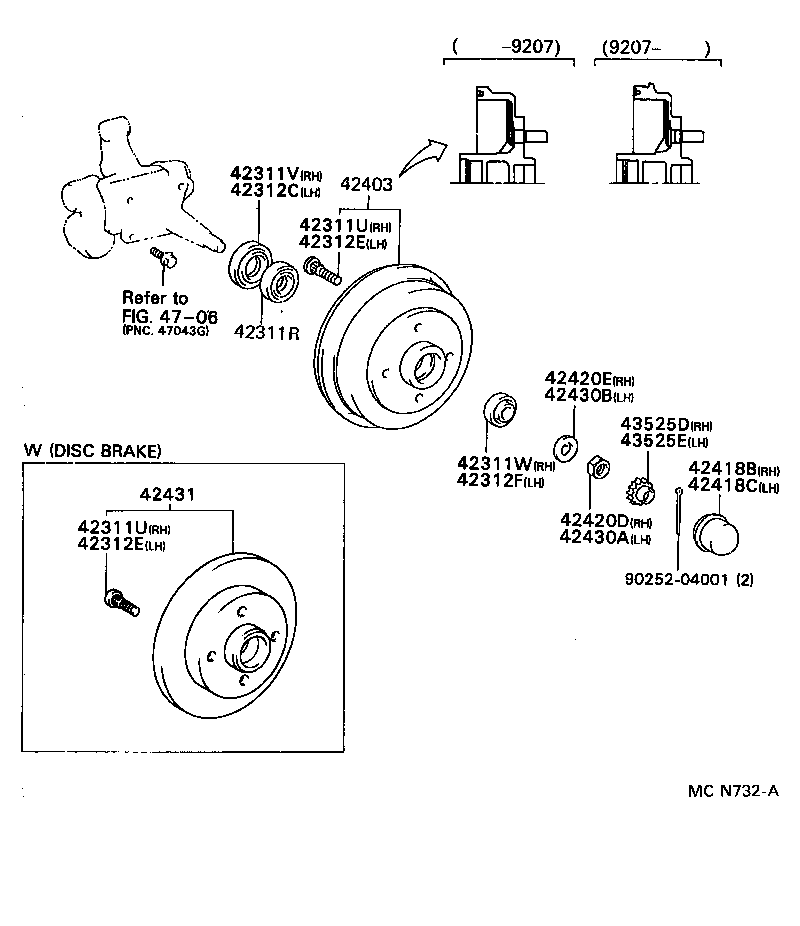

 PASEO |  REAR AXLE SHAFT HUB 42311R - BEARING (FOR REAR AXLE SHAFT INNER) 42311U - BOLT, HUB (FOR REAR AXLE RH) 42311U - BOLT, HUB (FOR REAR AXLE RH) 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) 42311W - BEARING (FOR REAR AXLE SHAFT OUTER RH) 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) 42312E - BOLT, HUB (FOR REAR AXLE LH) 42312E - BOLT, HUB (FOR REAR AXLE LH) 42312F - BEARING (FOR REAR AXLE SHAFT OUTER LH) 42403 - DRUM SUB-ASSY, REAR BRAKE 42418B - CAP, REAR HUB GREASE, RH 42418C - CAP, REAR HUB GREASE, LH 42420D - NUT (FOR REAR AXLE SHAFT RH) 42420E - WASHER, CLAW (FOR REAR AXLE SHAFT RH) 42430A - NUT (FOR REAR AXLE SHAFT LH) 42430B - WASHER, CLAW (FOR REAR AXLE SHAFT LH) 42431 - DISC, REAR 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH ** Refer Fig  ** Std Part
