TOYOTA PASEO EL44R-DCPSKQ / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

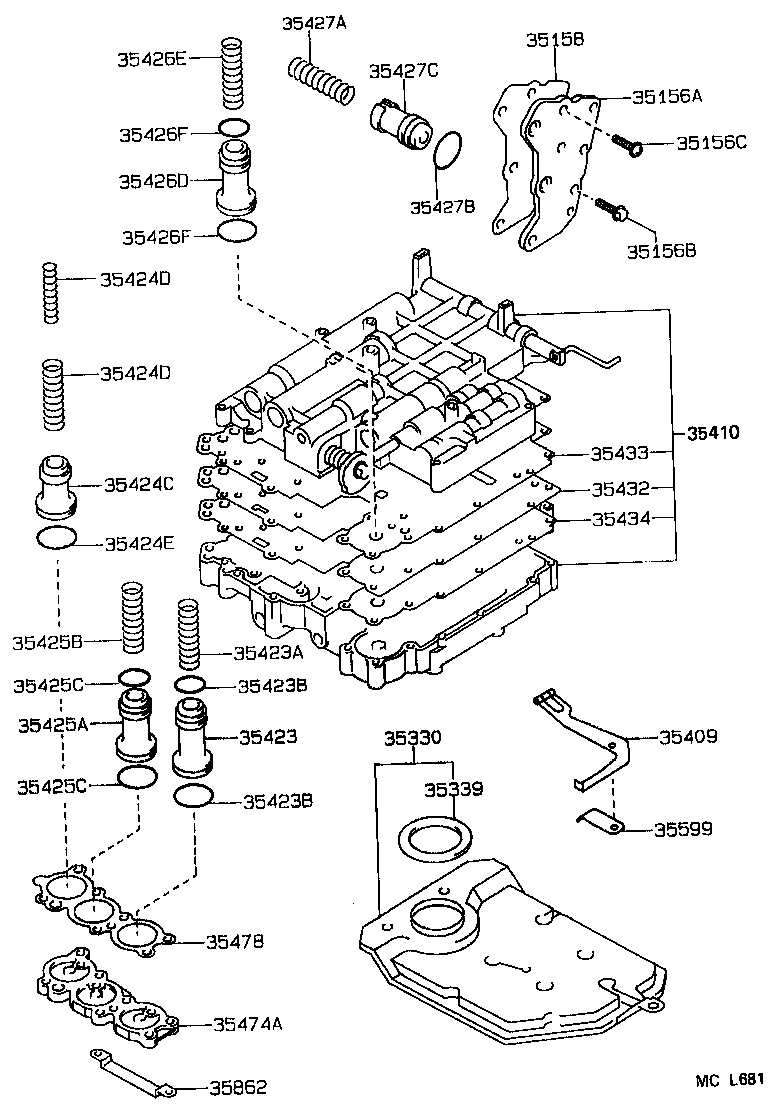

VALVE BODY OIL STRAINER ATM

A244E ILLUST NO. 1 OF 5(9104- )ATM

 PASEO |  VALVE BODY OIL STRAINER ATM 35156A - PLATE, TRANSMISSION CASE, NO.2 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) 35158 - GASKET, TRANSMISSION CASE, NO.2 PLATE 35330 - STRAINER ASSY, VALVE BODY OIL 35339 - GASKET, OIL STRAINER 35409 - SPRING SUB-ASSY, MANUAL DETENT 35410 - BODY ASSY, TRANSMISSION VALVE 35423 - PISTON, B-2 ACCUMULATOR 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35424C - PISTON, C-1 ACCUMULATOR 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35425A - PISTON, C-2 ACCUMULATOR 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35426D - PISTON, C-3 ACCUMULATOR 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) 35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON) 35427B - RING, O (FOR B-4 ACCUMULATOR PISTON) 35427C - PISTON, B-4 ACCUMULATOR 35432 - PLATE, VALVE BODY, NO.1 35433 - GASKET, VALVE BODY, NO.1 35434 - GASKET, VALVE BODY, NO.2 35474A - COVER, ACCUMULATOR 35478 - GASKET, ACCUMULATOR COVER 35599 - COVER, MANUAL DETENT SPRING 35862 - BRACKET, ACCUMULATOR APPLY TUBE
