TOYOTA TERCEL EL40R-AEMDS / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

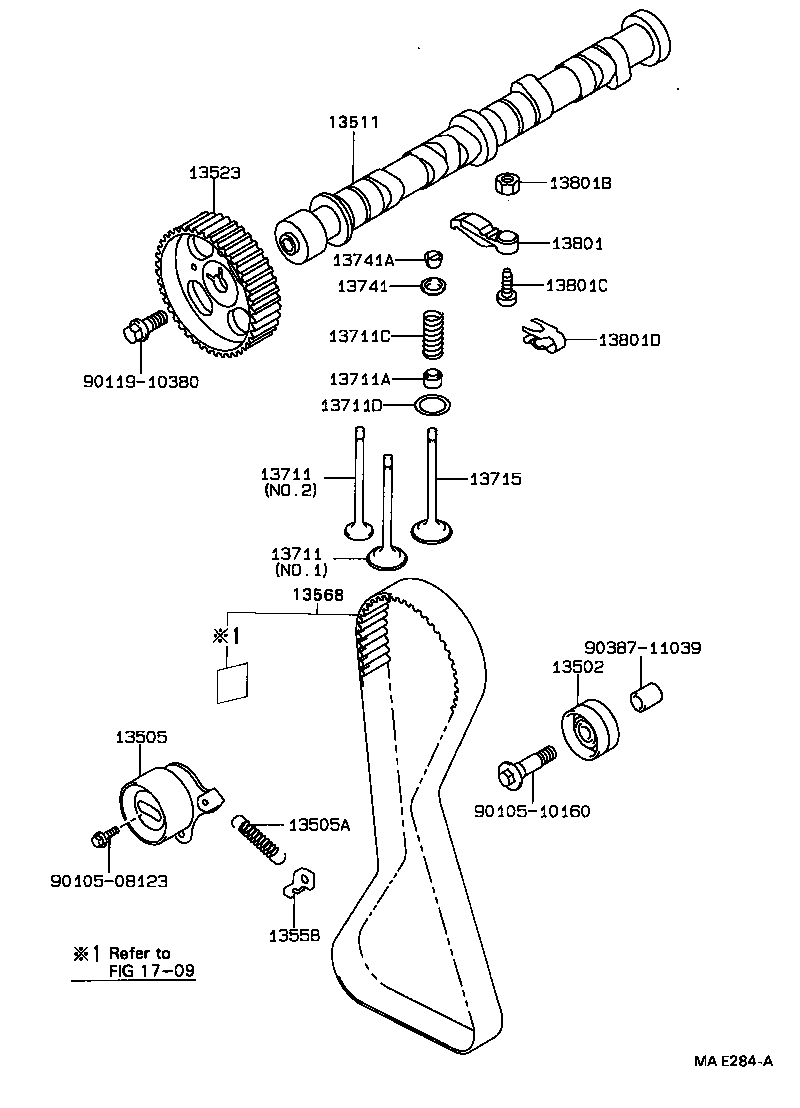

CAMSHAFT VALVE

(9009- )

 TERCEL |  CAMSHAFT VALVE 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 13505A - SPRING, TENSION(FOR IDLER) 13511 - CAMSHAFT 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING 13558 - BRACKET, SPRING(FOR IDLER) 13568 - BELT, TIMING 13711 - VALVE, INTAKE 13711 - VALVE, INTAKE 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711C - SPRING, COMPRESSION(FOR OUTER) 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) 13715 - VALVE, EXHAUST 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) 13801C - SCREW, VALVE ADJUSTING 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part
