TOYOTA LAND CRUISER 70 LJ77RV-MNX / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

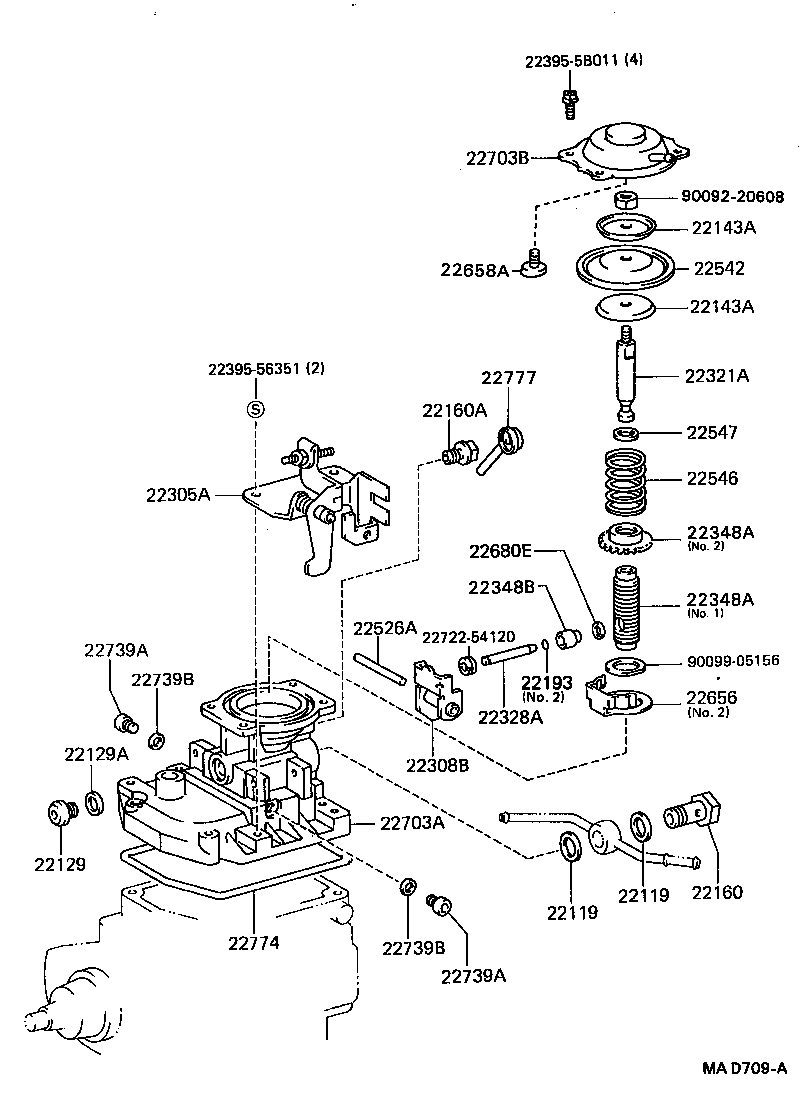

INJECTION PUMP BODY

ILLUST NO. 1 OF 2(9001-9305)2LT

 LAND CRUISER 70 |  INJECTION PUMP BODY 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22129 - PLUG, SCREW 22129A - WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) 22143A - SEAT, SPRING UPPER, NO.2 22143A - SEAT, SPRING UPPER, NO.2 22160 - SCREW SUB-ASSY, OVERFLOW 22160A - SCREW SUB-ASSY, OVER FLOW, NO.2 22193 - RING, O(FOR LEVER CONNECTING PIN) 22305A - IDLE-UP SUB-ASSY 22308B - LEVER SUB-ASSY, CONTROL 22321A - ROD, PUSH 22328A - PIN, LEVER CONNECTING 22348A - BUSHING, GUIDE 22348A - BUSHING, GUIDE 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN)  ** Std Part  ** Std Part 22526A - PIN, LEVER SUPPORT 22542 - DIAPHRAGM(FOR BOOST COMPENSATOR) 22546 - SPRING, BOOST COMPENSATOR 22547 - SHIM, BOOST COMPENSATOR 22656 - CLIP, TIMER 22658A - STOPPER, TIMER SLIDE 22680E - WASHER, COPPER PLATE 22703A - COVER SUB-ASSY, GOVERNOR 22703B - COVER, GOVERNOR  ** Std Part 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) 22774 - GASKET, GOVERNOR COVER 22777 - CAP, RUBBER(FOR BELLOWS)  ** Std Part  ** Std Part
