TOYOTA LAND CRUISER 70 HZJ75RP-KR / POWERTRAIN-CHASSIS / TRANSMISSION GEAR MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

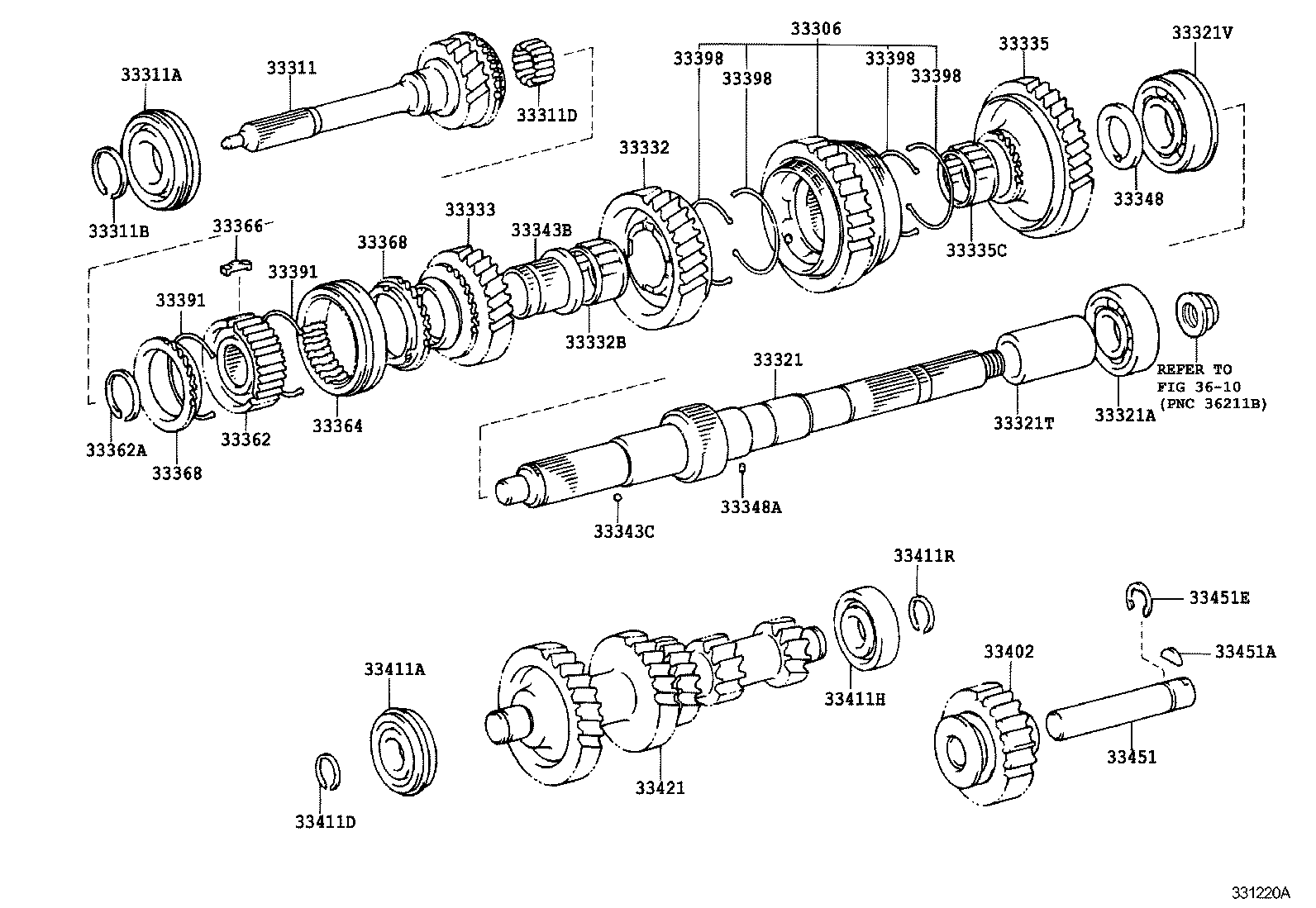

TRANSMISSION GEAR MTM

H41 (9001-9108)HJ75 ; (9001-9208)FJ70,75,HZJ75..4F

 LAND CRUISER 70 |  TRANSMISSION GEAR MTM 33306 - RING SUB-ASSY, SYNCHRONIZER, NO.1 33311 - SHAFT, INPUT 33311A - BEARING (FOR INPUT SHAFT FRONT) 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) 33311D - BEARING, INPUT SHAFT 33321 - SHAFT, OUTPUT 33321A - BEARING (FOR OUTPUT SHAFT REAR) 33321T - SPACER (FOR OUTPUT SHAFT) 33321V - BEARING (FOR OUTPUT SHAFT CENTER) 33332 - GEAR, 2ND 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) 33333 - GEAR, 3RD 33335 - GEAR, 1ST 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) 33343B - BUSH, 3RD GEAR 33343C - BALL (FOR 3RD GEAR BUSH) 33348 - WASHER, 1ST GEAR THRUST 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) 33362 - HUB, TRANSMISSION CLUTCH, NO.2 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) 33364 - SLEEVE, TRANSMISSION HUB, NO.2 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 33368 - RING, SYNCHRONIZER, NO.2 33368 - RING, SYNCHRONIZER, NO.2 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33398 - HOLDER, SYNCHRONIZER RING 33398 - HOLDER, SYNCHRONIZER RING 33398 - HOLDER, SYNCHRONIZER RING 33398 - HOLDER, SYNCHRONIZER RING 33402 - GEAR SUB-ASSY, REVERSE IDLER 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) 33411R - RING, SNAP, COUNTER GEAR REAR BEARING 33421 - GEAR, COUNTER 33451 - SHAFT, REVERSE IDLER GEAR 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) ** Refer Fig
