TOYOTA HILUX 2WD LN85L-TRKRS3 / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(8808-0106)LN81,85,86..LHD

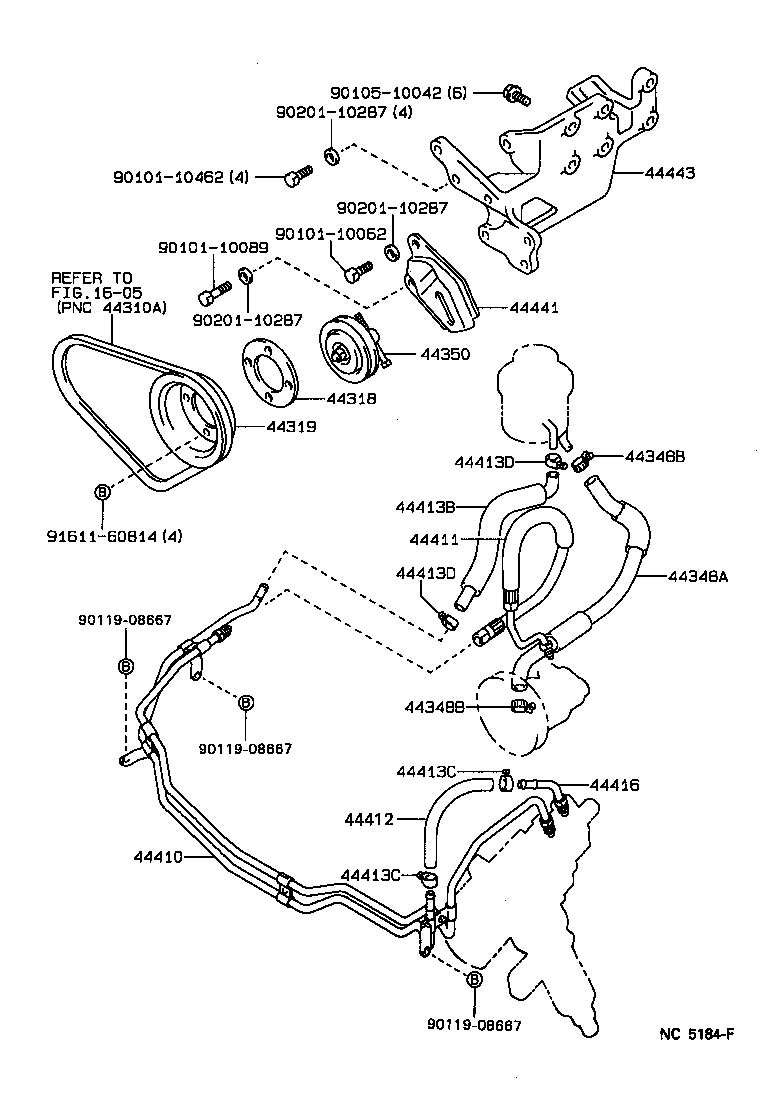

 HILUX 2WD |  POWER STEERING TUBE ** Refer Fig 44318 - SPACER, VANE PUMP DRIVE PULLEY 44319 - PULLEY, VANE PUMP DRIVE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44350 - PULLEY ASSY, POWER STEERING IDLE 44410 - TUBE ASSY, PRESSURE FEED 44411 - HOSE, PRESSURE FEED 44412 - HOSE, RETURN 44413B - HOSE(FOR RESERVOIR TANK INLET) 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44441 - BRACKET, PUMP, FRONT 44443 - BRACKET, PUMP  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
