TOYOTA SUPRA MA70L-BLMVFV / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

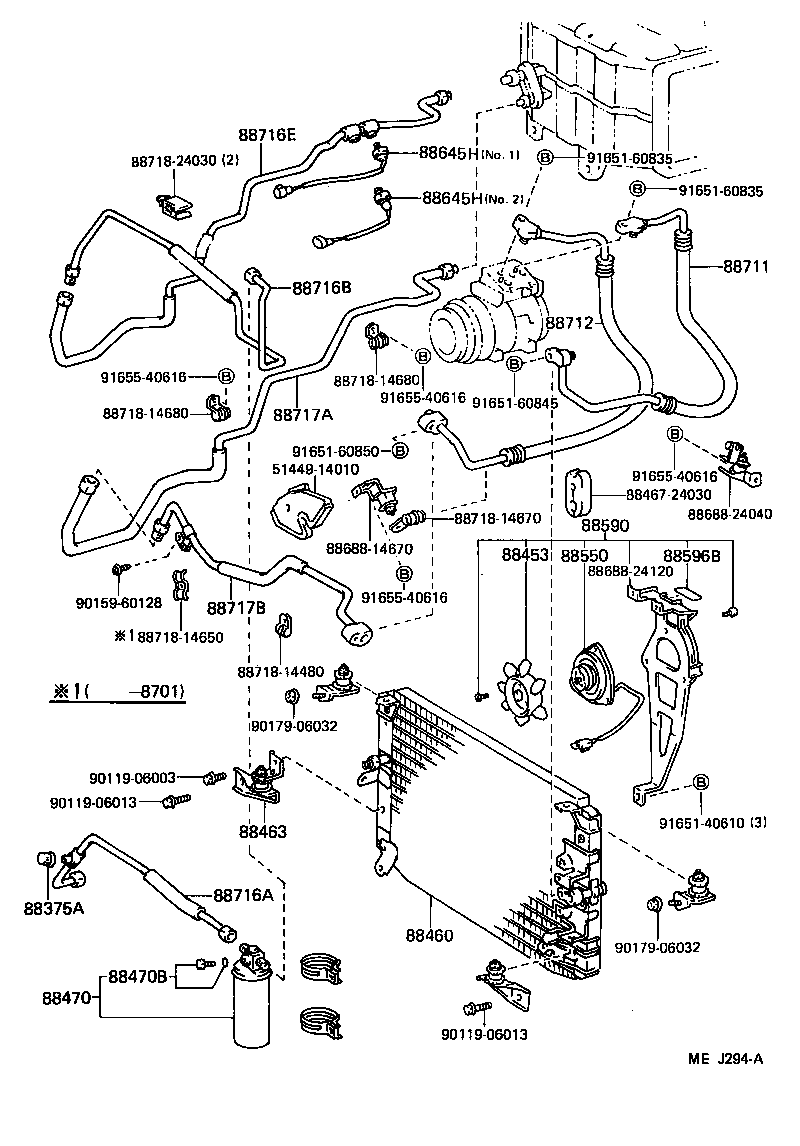

HEATING AIR CONDITIONING COOLER PIPING

(8701- )LHD

 SUPRA |  HEATING AIR CONDITIONING COOLER PIPING  ** Std Part 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88453 - FAN, COOLING (FOR CONDENSER) 88460 - CONDENSER ASSY, COOLER 88463 - BRACKET, COOLER CONDENSER, NO.1  ** Std Part 88470 - RECEIVER & DRYER ASSY, COOLER 88470B - BOLT, FUSE 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88590 - BLOWER ASSY, W/SHROUD 88596B - PLATE, CAUTION, NO.1 88645H - SWITCH, PRESSURE NO.1 88645H - SWITCH, PRESSURE NO.1  ** Std Part  ** Std Part  ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
