TOYOTA CRESSIDA RX30R-EKDN / TOOL-ENGINE-FUEL / VENTILATION HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VENTILATION HOSE

(7612-8008)18R#

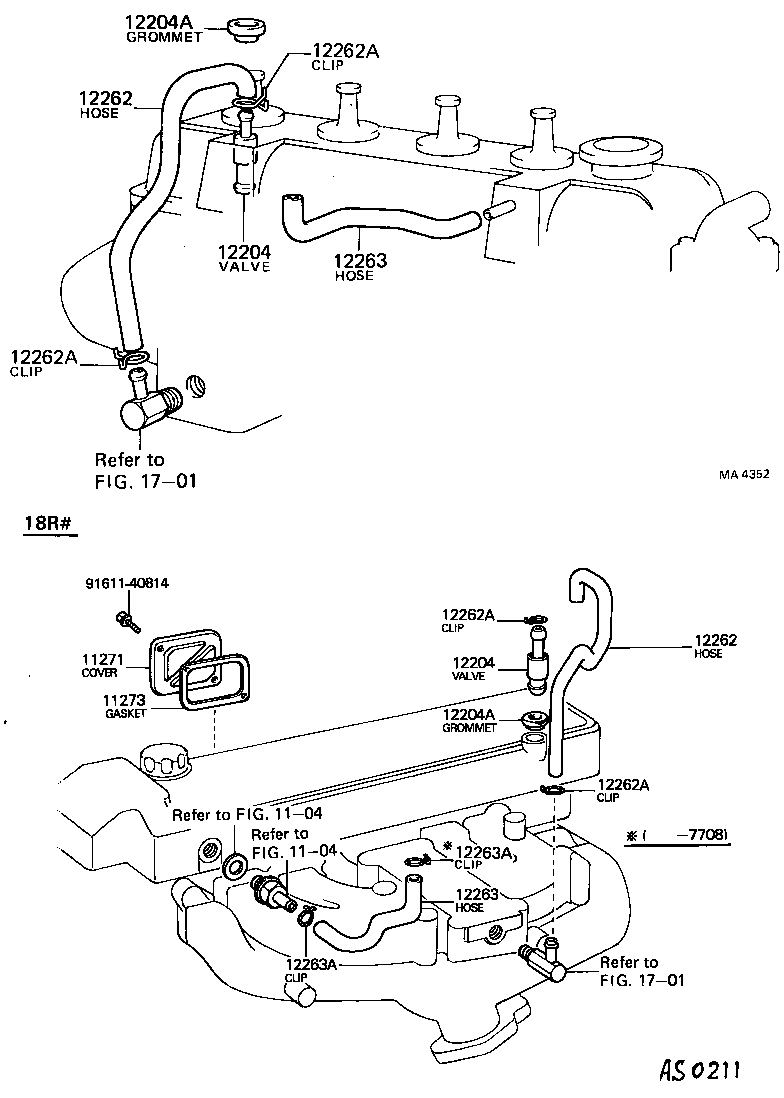

 CRESSIDA |  VENTILATION HOSE ** Refer Fig ** Refer Fig 11271 - COVER, CYLINDER BLOCK SIDE 11273 - GASKET, CYLINDER BLOCK SIDE COVER 12204 - VALVE SUB-ASSY, VENTILATION 12204 - VALVE SUB-ASSY, VENTILATION 12204A - GROMMET(FOR VENTILATION SYSTEM) 12204A - GROMMET(FOR VENTILATION SYSTEM) 12262 - HOSE, VENTILATION, NO.2 12262 - HOSE, VENTILATION, NO.2 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12262A - CLIP(FOR VENTILATION HOSE NO.2) 12263 - HOSE, VENTILATION, NO.3 12263 - HOSE, VENTILATION, NO.3 12263A - CLIP(FOR VENTILATION HOSE) 12263A - CLIP(FOR VENTILATION HOSE) ** Refer Fig ** Refer Fig  ** Std Part
