TOYOTA CARINA TA12-HDF / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

(7401-7509)

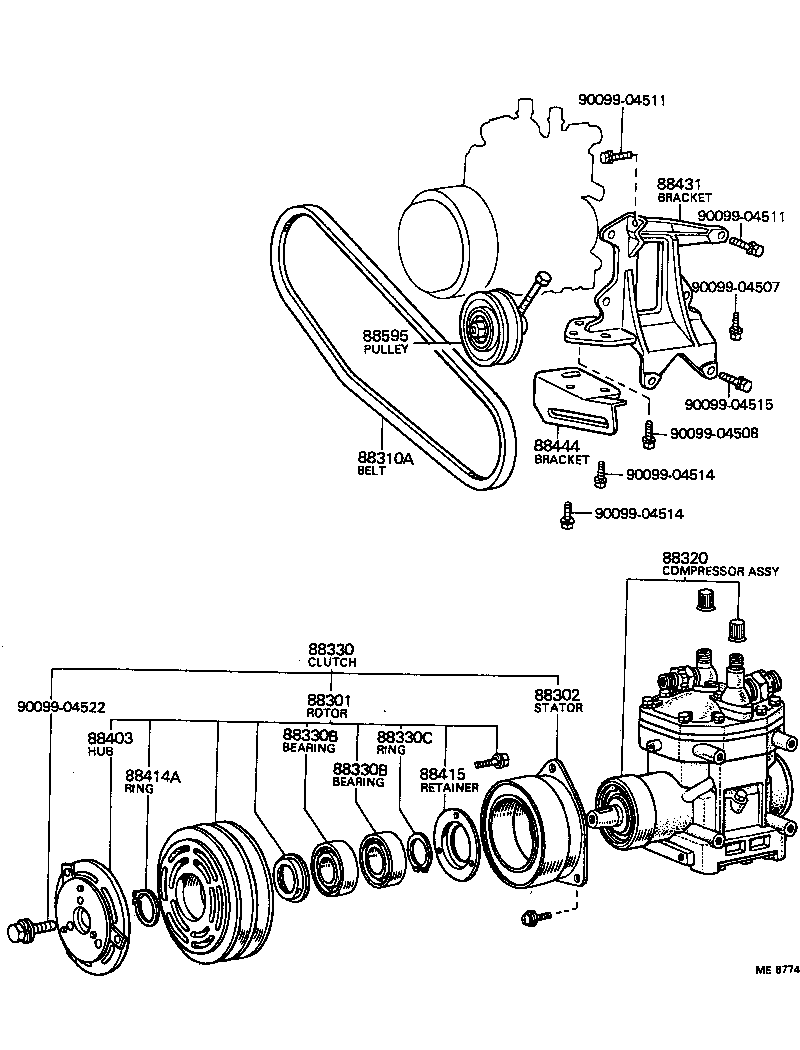

 CARINA |  HEATING AIR CONDITIONING COMPRESSOR 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH 88302 - STATOR SUB-ASSY, MAGNET CLUTCH 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 88320 - COMPRESSOR ASSY, COOLER 88330 - CLUTCH ASSY, MAGNET 88330B - BEARING, MAGNET CLUTCH 88330B - BEARING, MAGNET CLUTCH 88330C - RING, SNAP (FOR MAGNET CLUTCH) 88403 - HUB SUB-ASSY, MAGNET CLUTCH 88414A - RING, SHIELD SNAP 88415 - RETAINER, MAGNET CLUTCH BEARING, NO.1 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 88444 - BRACKET, IDLE PULLEY 88595 - PULLEY, COOLER COMPRESSOR IDLE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
