TOYOTA CARINA TA12-HDF / ELECTRICAL / METER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

METER

(7208-7509)

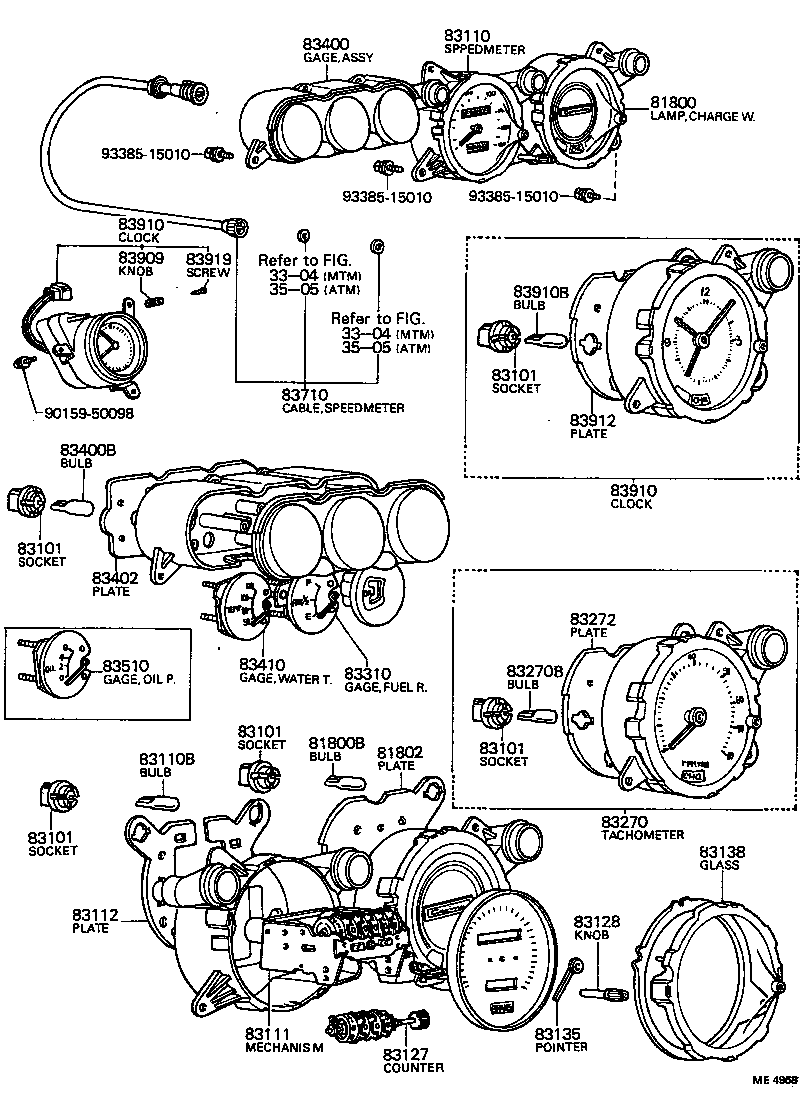

 CARINA |  METER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 81800 - LAMP ASSY, CHARGE WARNING 81800B - BULB, CHARGE WARNING 81802 - PLATE SUB-ASSY, CHARGE WARNING CIRCUIT 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83110 - SPEEDOMETER ASSY 83110B - BULB, SPEEDOMETER 83111 - MECHANISM, SPEEDOMETER 83112 - PLATE SUB-ASSY, SPEEDOMETER CIRCUIT 83127 - COUNTER, TRIP 83128 - KNOB, TRIP COUNTER 83135 - POINTER, SPEEDOMETER 83138 - GLASS, SPEEDOMETER 83270 - TACHOMETER ASSY, ENGINE 83270B - BULB, ENGINE TACHOMETER 83272 - PLATE SUB-ASSY, TACHOMETER CIRCUIT 83310 - GAGE ASSY, FUEL RECEIVER 83400 - GAGE ASSY, COMBINATION 83400B - BULB, COMBINATION GAGE 83402 - PLATE SUB-ASSY, COMBINATION GAGE CIRCUIT 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER 83510 - GAGE ASSY, OIL PRESSURE RECEIVER 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 83909 - KNOB, CLOCK 83910 - CLOCK ASSY 83910 - CLOCK ASSY 83910B - BULB, CLOCK INDICATOR 83912 - PLATE SUB-ASSY, CLOCK CIRCUIT 83919 - SCREW, CLOCK  ** Std Part  ** Std Part  ** Std Part  ** Std Part
