TOYOTA YARIS HYBRID FRP NHP130L-CHXGBW / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

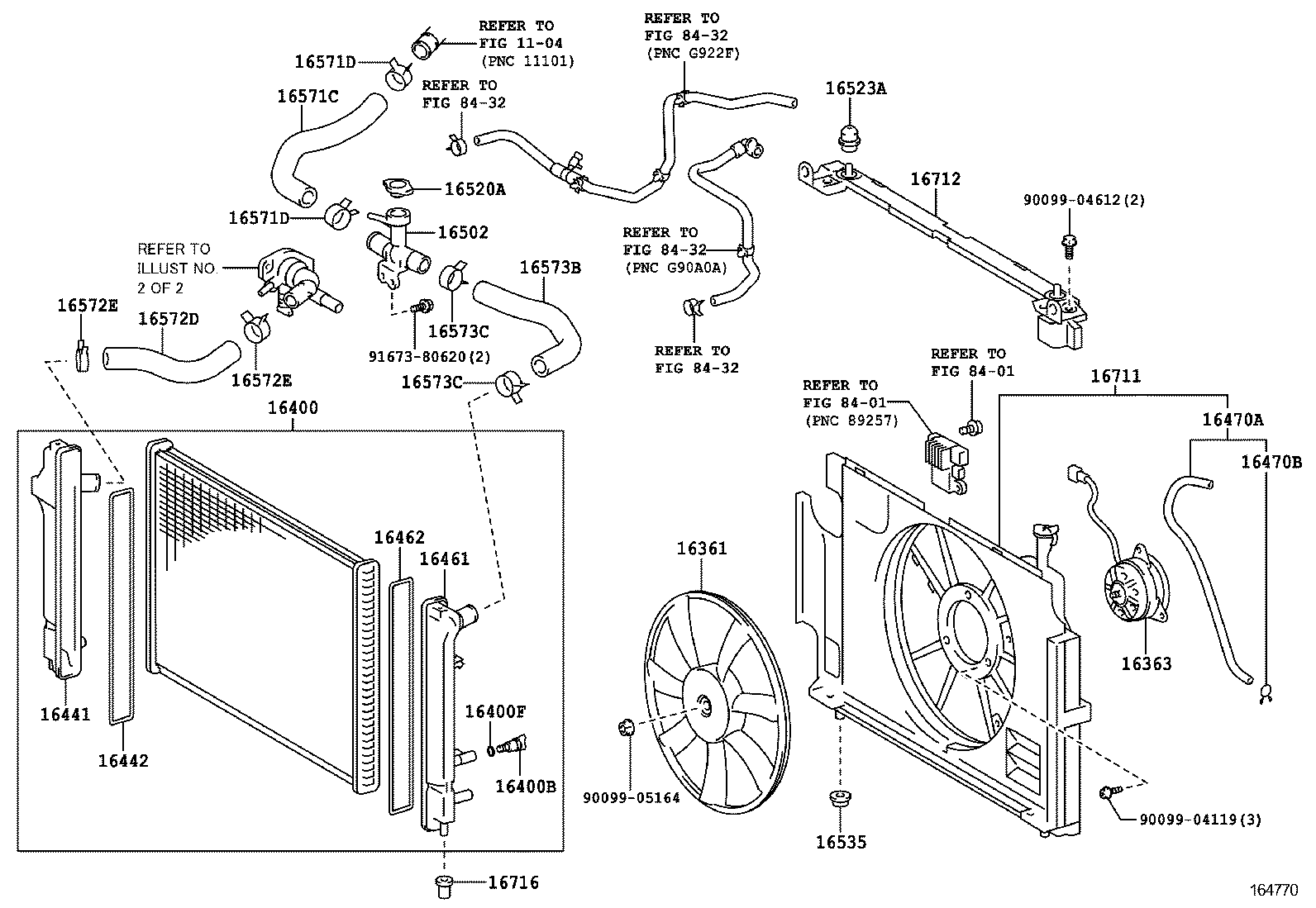

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(1204- )1NZFXE

YARIS HYBRID FRP | RADIATOR WATER OUTLET ** Refer Fig 16361 - FAN 16363 - MOTOR, COOLING FAN 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16441 - TANK, RADIATOR, UPPER 16442 - RING, O(FOR RADIATOR UPPER TANK) 16461 - TANK, RADIATOR, LOWER 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16502 - FILLER SUB-ASSY, WATER 16520A - CAP SUB-ASSY, WATER FILLER 16523A - CUSHION, RADIATOR SUPPORT 16535 - SUPPORT, RADIATOR, LOWER 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16573B - HOSE, RADIATOR, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16711 - SHROUD, FAN 16712 - SHROUD, FAN, NO.2 16716 - CUSHION, FAN SHROUD ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
