TOYOTA YARIS HYBRID FRP NHP130L-CHXGBW / TOOL-ENGINE-FUEL / ENGINE OIL PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

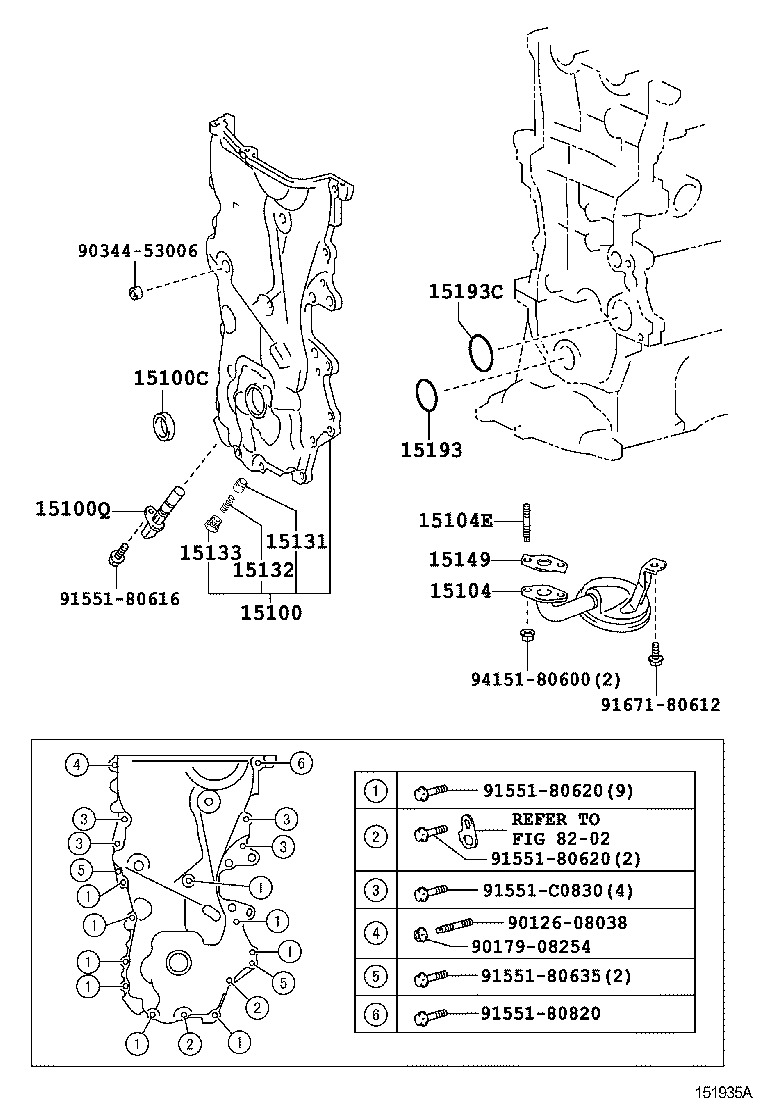

ENGINE OIL PUMP

(1204- )1NZFXE

 YARIS HYBRID FRP |  ENGINE OIL PUMP 15100 - PUMP ASSY, OIL 15100C - SEAL(FOR OIL PUMP) 15100Q - SENSOR, CRANK POSITION 15104 - STRAINER SUB-ASSY, OIL 15104E - BOLT, STUD(FOR OIL STRAINER) 15131 - VALVE, OIL PUMP RELIEF 15132 - SPRING, OIL PUMP RELIEF VALVE 15133 - PLUG, OIL PUMP RELIEF VALVE 15149 - GASKET, OIL STRAINER FLANGE 15193 - GASKET, OIL PUMP 15193C - GASKET, OIL PUMP NO.2 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
