TOYOTA VERSO S NSP120L-CHFXKW / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

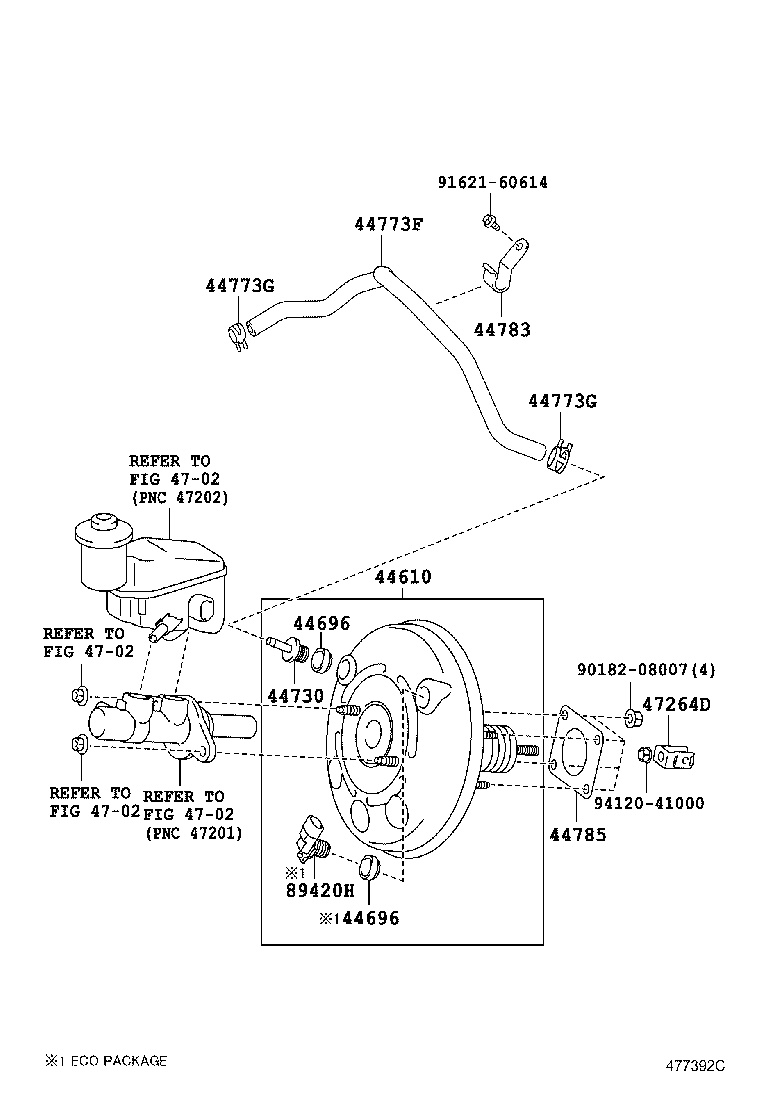

BRAKE BOOSTER VACUUM TUBE

(1011- )NSP120..LHD

 VERSO S |  BRAKE BOOSTER VACUUM TUBE 44610 - BOOSTER ASSY, BRAKE 44696 - GROMMET, CHECK VALVE 44696 - GROMMET, CHECK VALVE 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44773F - HOSE, UNION TO CHECK VALVE 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) 44783 - CLAMP, VACUUM HOSE 44785 - GASKET, BRAKE BOOSTER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD 89420H - SENSOR ASSY, VACUUM  ** Std Part  ** Std Part  ** Std Part
