TOYOTA VERSO S NSP120L-CHFXKW / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

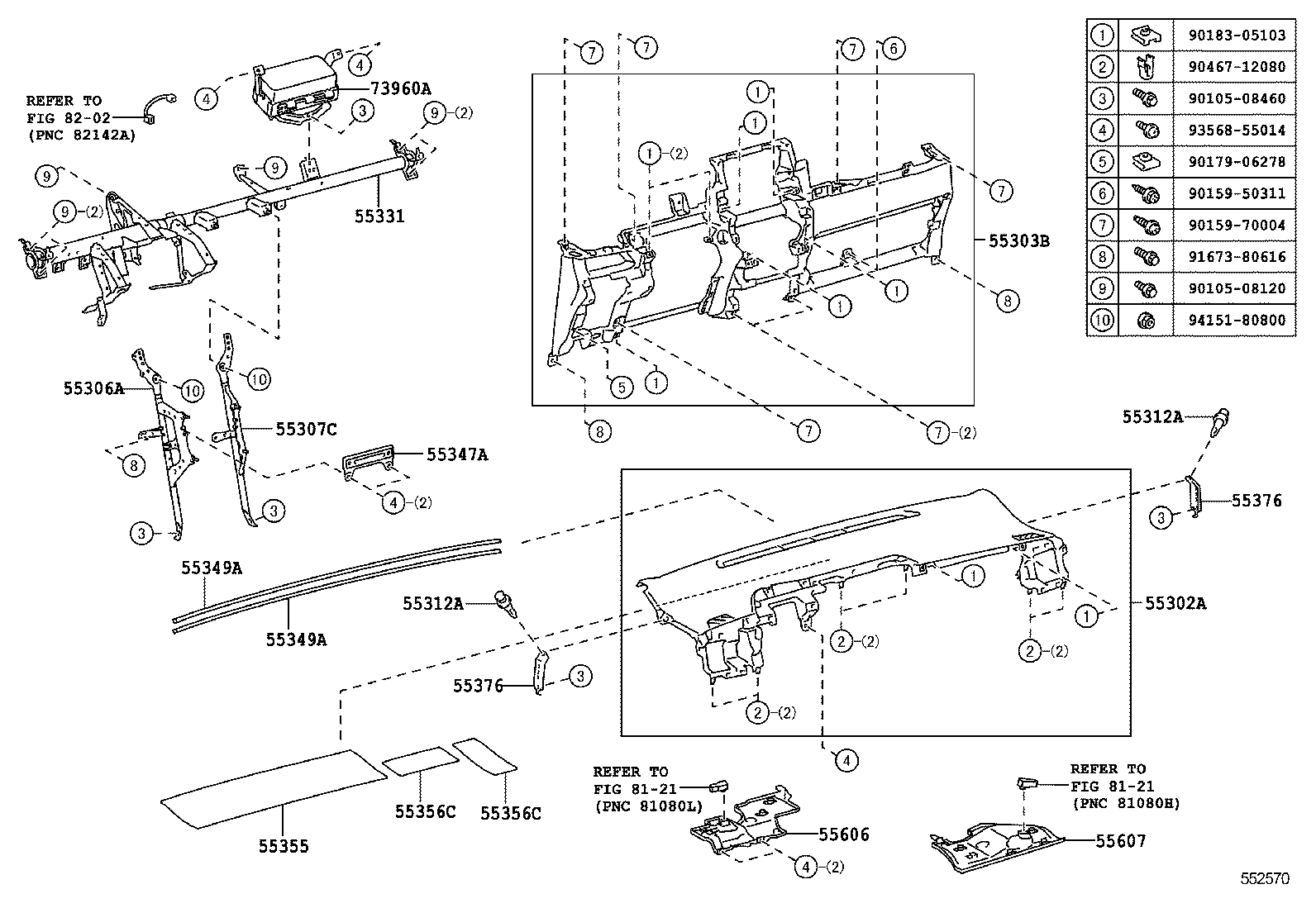

ILLUST NO. 1 OF 2(1011- )LHD

 VERSO S |  INSTRUMENT PANEL GLOVE COMPARTMENT 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55312A - CLIP, INSTRUMENT PANEL 55312A - CLIP, INSTRUMENT PANEL 55331 - REINFORCEMENT, INSTRUMENT PANEL 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 55349A - CUSHION, INSTRUMENT PANEL 55349A - CUSHION, INSTRUMENT PANEL 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55356C - CUSHION, INSTRUMENT PANEL, NO.2 55356C - CUSHION, INSTRUMENT PANEL, NO.2 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
