TOYOTA GT86 86 ZN6AC-C8 / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

REAR AXLE HOUSING DIFFERENTIAL

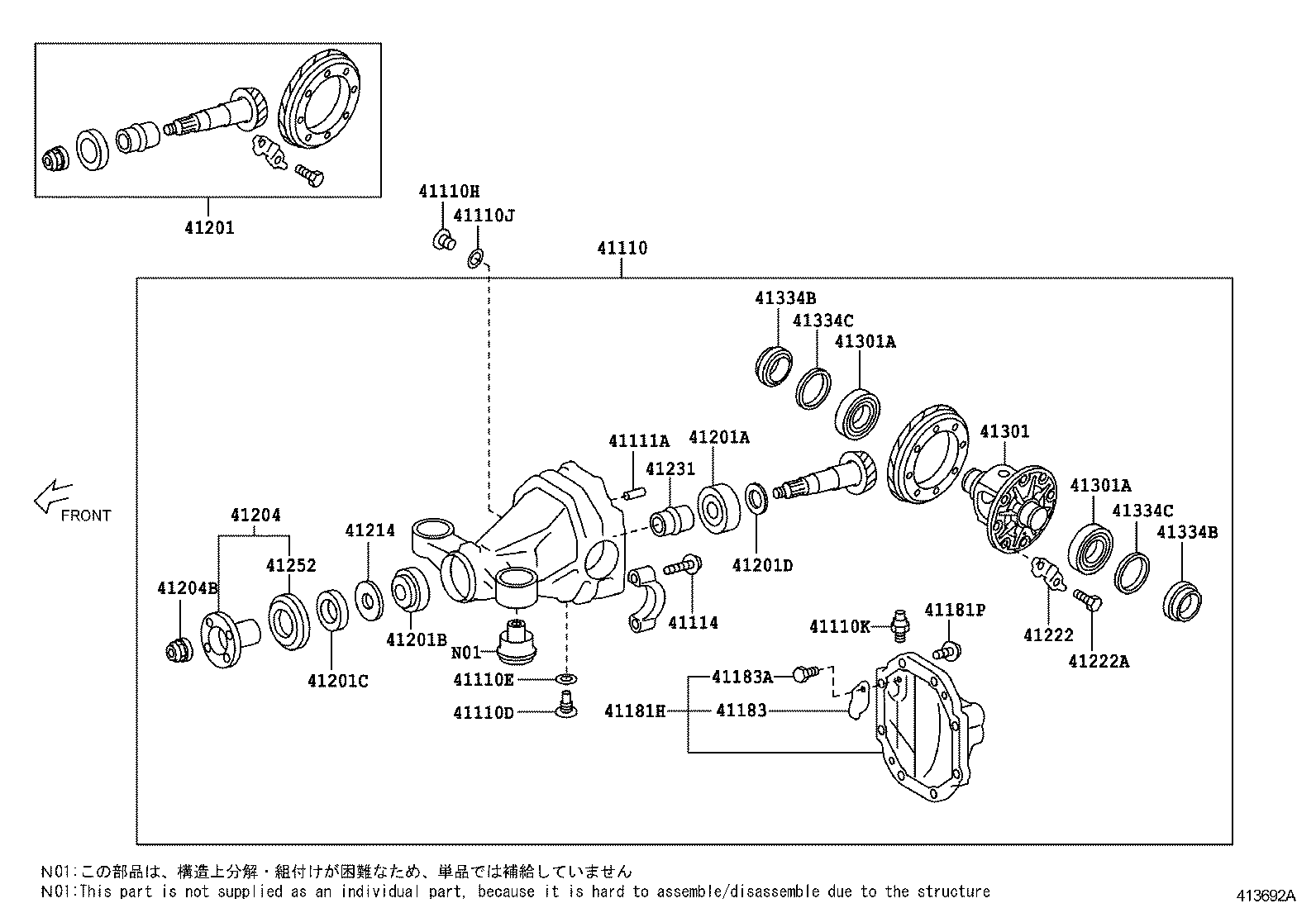

ILLUST NO. 1 OF 2(1204- )6FC..HI ; (1204- )6F..BASE,HI

GT86 86 | REAR AXLE HOUSING DIFFERENTIAL 41110 - CARRIER ASSY, DIFFERENTIAL, REAR 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) 41111A - PIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER) 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP 41181H - COVER, REAR DIFFERENTIAL CARRIER 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL 41183A - BOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR) 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR 41201A - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41201B - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR 41204B - NUT (FOR REAR DRIVE PINION) 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
