TOYOTA AURIS HYBRID UKP ZWE150L-DHXNBW / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

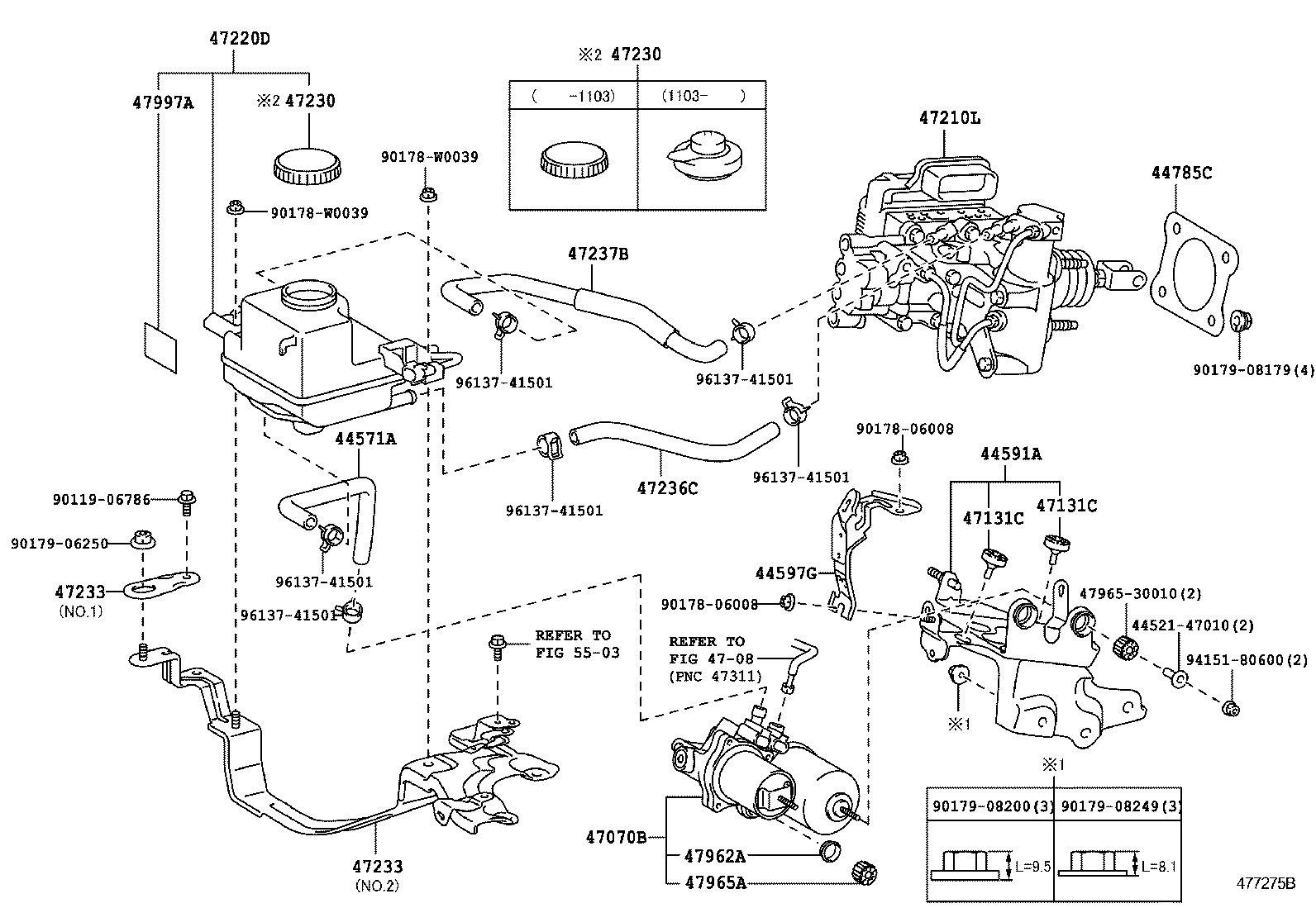

BRAKE MASTER CYLINDER

(1006- )ZWE150..LHD

AURIS HYBRID UKP | BRAKE MASTER CYLINDER ** Std Part 44571A - HOSE, BRAKE ACTUATOR, NO.1 44591A - BRACKET, BRAKE ACTUATOR, NO.1 44597G - BRACKET, BRAKE ACTUATOR, NO.7 44785C - GASKET, BRAKE BOOSTER 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR ** Refer Fig 47131C - CUSHION 47131C - CUSHION 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47233 - BRACKET, RESERVOIR 47233 - BRACKET, RESERVOIR 47236C - HOSE, RESERVOIR TUBE 47237B - HOSE, RESERVIOR TUBE 47962A - COLLAR, BRAKE BOOSTER PUMP ** Std Part 47965A - BUSH, BRAKE BOOSTER PUMP 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
