TOYOTA AURIS HYBRID UKP ZWE150L-DHXNBW / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

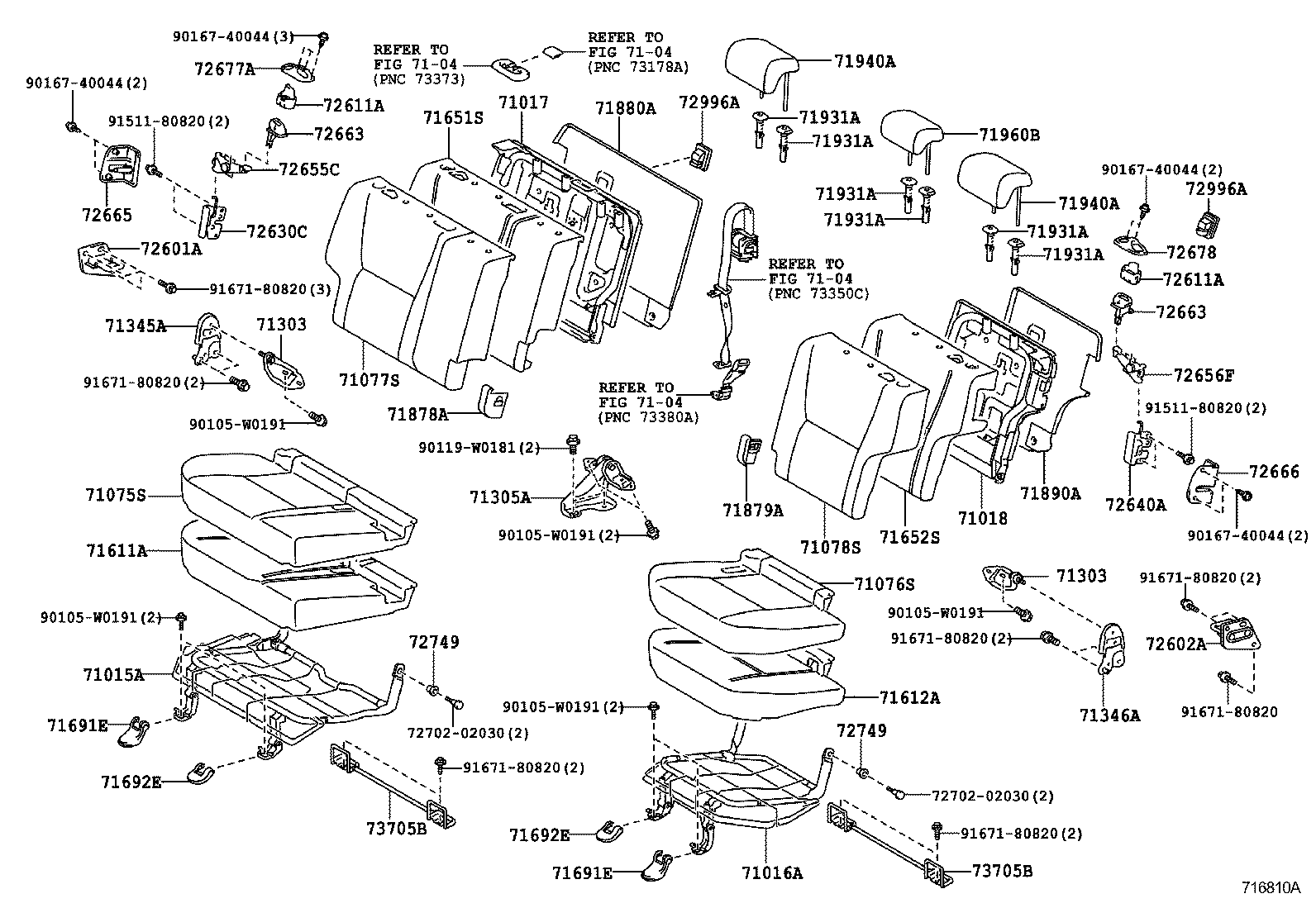

REAR SEAT SEAT TRACK

(1006- )ZWE150

AURIS HYBRID UKP | REAR SEAT SEAT TRACK 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71303 - HINGE SUB-ASSY, REAR SEAT BACK 71303 - HINGE SUB-ASSY, REAR SEAT BACK 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER 71345A - STAY, REAR SEAT BACK, RH 71346A - STAY, REAR SEAT BACK, LH 71611A - PAD, REAR SEAT CUSHION, RH 71612A - PAD, REAR SEAT CUSHION, LH 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 71878A - COVER, REAR SEAT RECLINING, INNER RH 71879A - COVER, REAR SEAT RECLINING, INNER LH 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 71960B - HEADREST ASSY, REAR SEAT, CENTER 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH 72611A - BASE, REAR SEAT LOCK 72611A - BASE, REAR SEAT LOCK 72630C - LOCK ASSY, REAR SEAT BACK, RH 72640A - LOCK ASSY, REAR SEAT BACK, LH 72655C - LINK, REAR SEAT BACK LOCK CONTROL, NO.1 RH 72656F - LINK, REAR SEAT BACK LOCK CONTROL, NO.1 LH 72663 - LEVER, REAR SEAT LOCK CONTROL, NO.1 72663 - LEVER, REAR SEAT LOCK CONTROL, NO.1 72665 - COVER, REAR SEAT BACK LOCK, RH 72666 - COVER, REAR SEAT BACK LOCK, LH 72677A - BASE, REAR SEAT BACK LOCK CONTROL LEVER, RH 72678 - BASE, REAR SEAT BACK LOCK CONTROL LEVER, LH ** Std Part ** Std Part 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72996A - COVER, REAR SEAT BACK 72996A - COVER, REAR SEAT BACK 73705B - BRACKET SUB-ASSY, CROSS ANCHOR 73705B - BRACKET SUB-ASSY, CROSS ANCHOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
