TOYOTA AURIS HYBRID UKP ZWE150L-DHXNBW / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

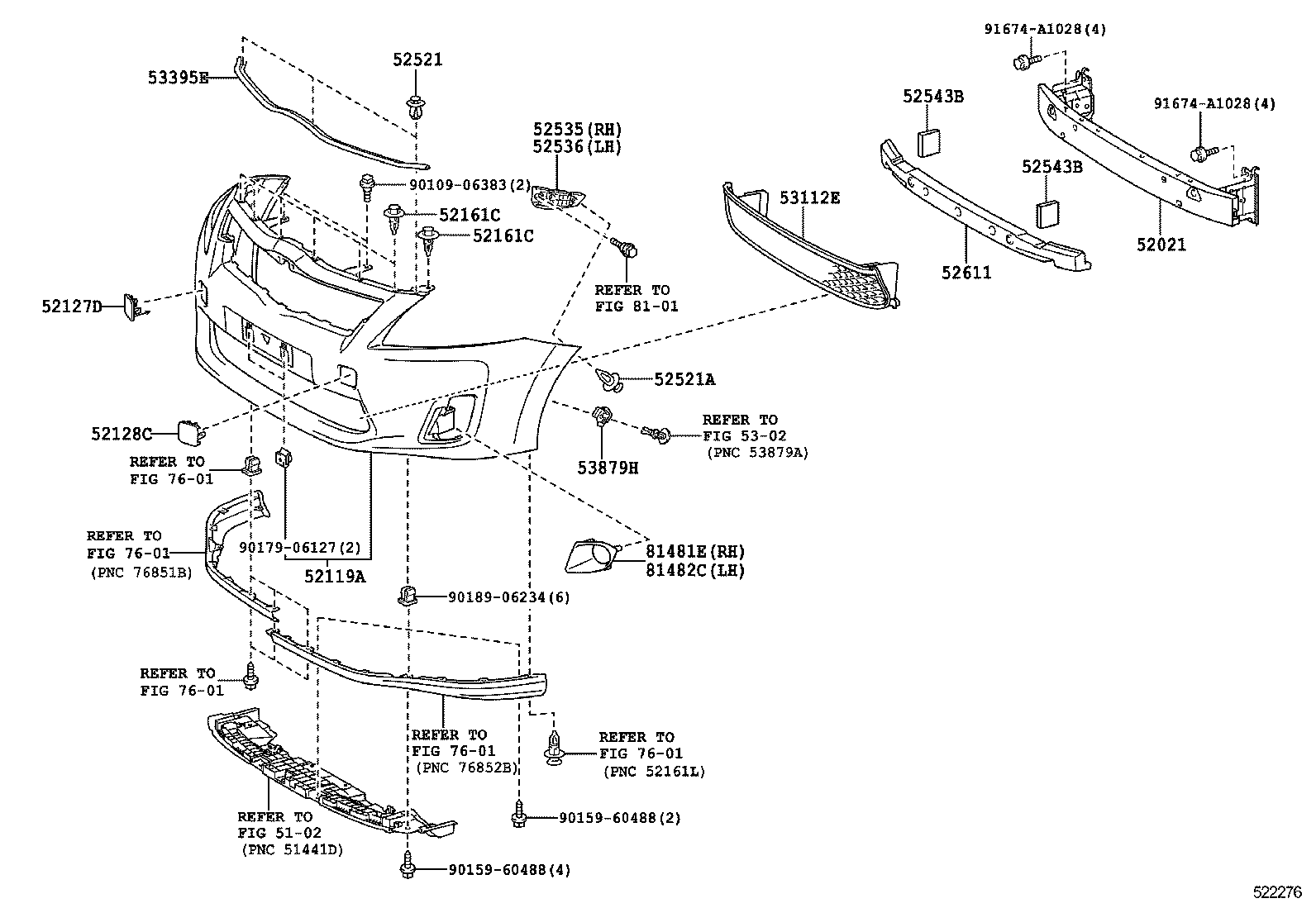

FRONT BUMPER BUMPER STAY

(1006- )ZWE150

AURIS HYBRID UKP | FRONT BUMPER BUMPER STAY ** Refer Fig 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52119A - COVER, FRONT BUMPER 52127D - COVER, FRONT BUMPER HOLE, RH 52128C - COVER, FRONT BUMPER HOLE, LH 52161C - PIECE, FRONT BUMPER 52161C - PIECE, FRONT BUMPER 52521 - RETAINER, FRONT BUMPER, UPPER CENTER 52521A - CLIP(FOR FRONT BUMPER RETAINER) 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52543B - SEAL, FRONT BUMPER 52543B - SEAL, FRONT BUMPER 52611 - ABSORBER, FRONT BUMPER ENERGY ** Refer Fig 53112E - GRILLE, RADIATOR, LOWER NO.1 53395E - SEAL, HOOD TO FRONT END PANEL 53879H - RETAINER, FRONT FENDER LINER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 81481E - COVER, FOG LAMP, RH 81482C - COVER, FOG LAMP, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
