TOYOTA VERSO S NLP121L-CHLGXW / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

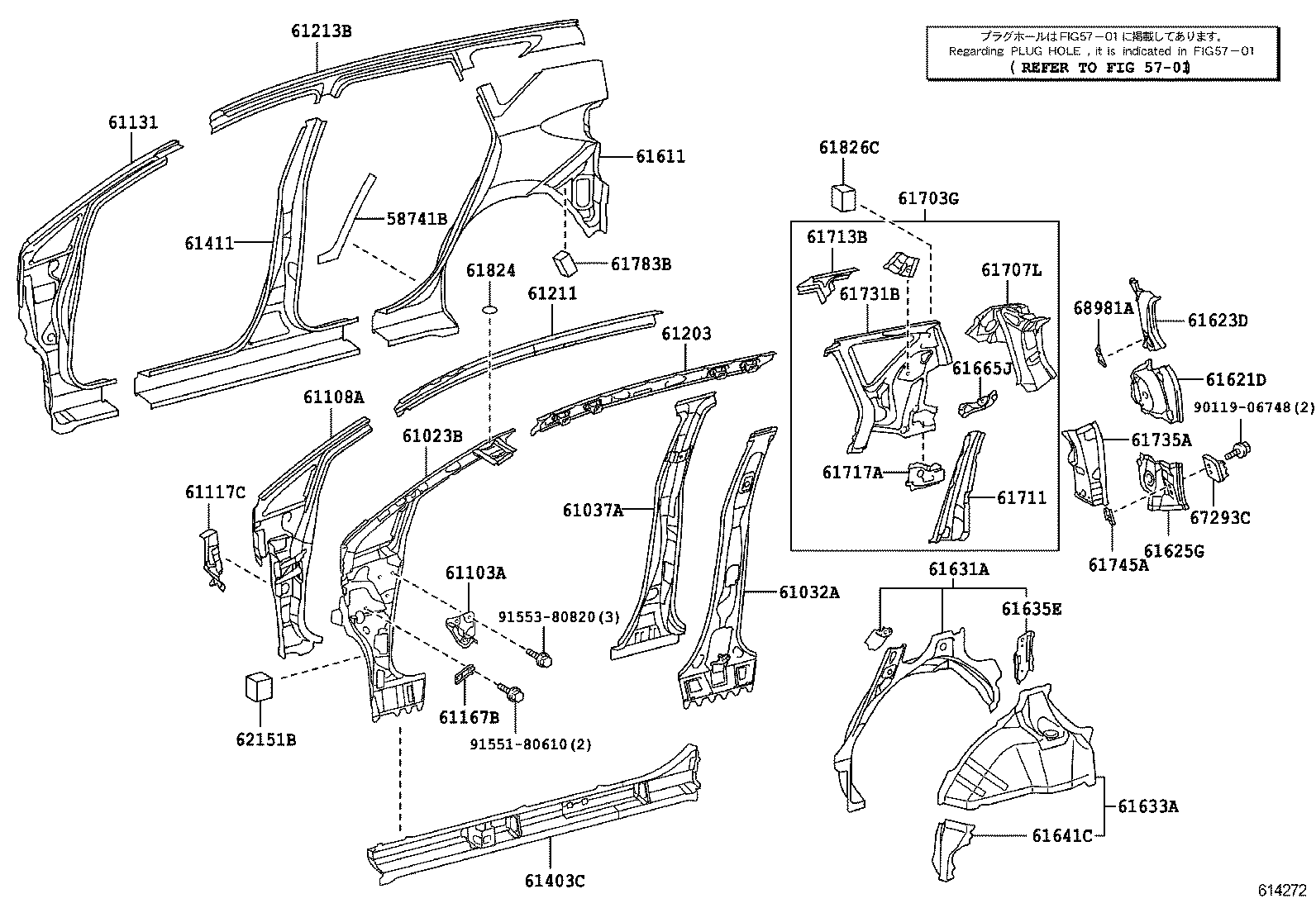

SIDE MEMBER

RH ILLUST NO. 1 OF 2(1011- )

 VERSO S |  SIDE MEMBER ** Refer Fig 58741B - PROTECTOR, QUARTER PANEL, RH 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61117C - GUSSET, SIDE PANEL TO COWL, RH 61131 - PILLAR, FRONT BODY, UPPER OUTER RH 61167B - BRACE, FRONT BODY PILLAR, LOWER 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH 61211 - RAIL, ROOF SIDE, OUTER RH 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH 61411 - PANEL, ROCKER, OUTER RH 61611 - PANEL, QUARTER, RH 61621D - TROUGH, BACK DOOR OPENING, RH 61623D - EXTENSION, QUARTER PANEL, FRONT RH 61625G - EXTENSION, QUARTER PANEL, REAR RH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH 61665J - PLATE, SEAT BELT ANCHORAGE, RH 61703G - PANEL SUB-ASSY, QUARTER, INNER RH 61707L - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH 61711 - PANEL, ROOF SIDE, OUTER RH 61713B - REINFORCE, ROOF SIDE, OUTER RH 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH 61731B - PANEL, ROOF SIDE, INNER RH 61735A - PANEL, ROOF SIDE, INNER REAR RH 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 61824 - PLATE, NOISE CONTROL, NO.1 61826C - PAD, NOISE SHUTTER, NO.3 62151B - PAD, COWL SIDE SILENCER 67293C - CUSHION, BACK DOOR STOPPER 68981A - RETAINER, BACK DOOR STAY, RH  ** Std Part  ** Std Part  ** Std Part
