TOYOTA RAV4 ACA33R-ANPXKQ / BODY / INSIDE TRIM BOARD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSIDE TRIM BOARD

(0511- )ACA33,38,GSA33

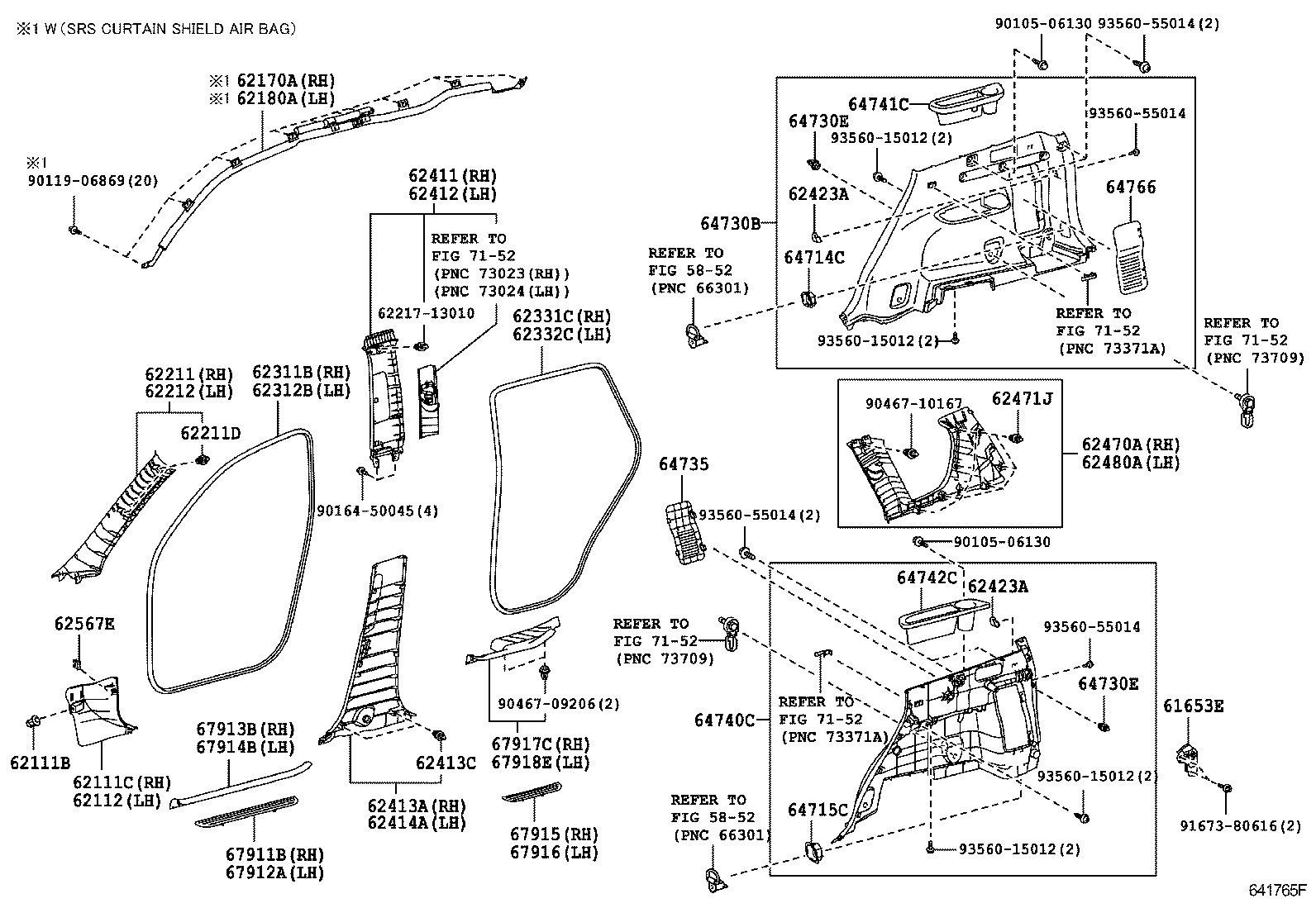

 RAV4 |  INSIDE TRIM BOARD ** Refer Fig ** Refer Fig 61653E - BRACKET, DECK SIDE TRIM 62111B - CLIP(FOR COWL SIDE TRIM) 62111C - BOARD, COWL SIDE TRIM, RH 62112 - BOARD, COWL SIDE TRIM, LH 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH 62211 - GARNISH, FRONT PILLAR, RH 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) 62212 - GARNISH, FRONT PILLAR, LH  ** Std Part 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH 62411 - GARNISH, CENTER PILLAR, RH 62412 - GARNISH, CENTER PILLAR, LH 62413A - GARNISH, CENTER PILLAR, LOWER RH 62413C - CLIP (FOR CENTER LOWER GARNISH) 62414A - GARNISH, CENTER PILLAR, LOWER LH 62423A - HOOK, SIDE WINDOW GARNISH 62423A - HOOK, SIDE WINDOW GARNISH 62470A - GARNISH ASSY, ROOF SIDE, INNER RH 62471J - CLIP (FOR ROOF SIDE GARNISH) 62480A - GARNISH ASSY, ROOF SIDE, INNER LH 62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 64714C - COVER, DECK SIDE TRIM, RH 64715C - COVER, DECK SIDE TRIM, LH 64730B - PANEL ASSY, DECK TRIM SIDE, RH 64730E - CLIP(FOR DECK TRIM SIDE BOARD) 64730E - CLIP(FOR DECK TRIM SIDE BOARD) 64735 - COVER, DECK TRIM SIDE SERVICE HOLE 64740C - PANEL ASSY, DECK TRIM SIDE, LH 64741C - BOX, DECK SIDE TRIM, RH 64742C - BOX, DECK SIDE TRIM, LH 64766 - COVER SUB-ASSY, QUARTER TRIM JACK 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH 67913B - PLATE, FRONT DOOR SCUFF, RH 67914B - PLATE, FRONT DOOR SCUFF, LH 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH 67917C - PLATE, REAR DOOR SCUFF, RH 67918E - PLATE, REAR DOOR SCUFF, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
