TOYOTA LAND CRUISER 150 KDJ150L-GKFEYW / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

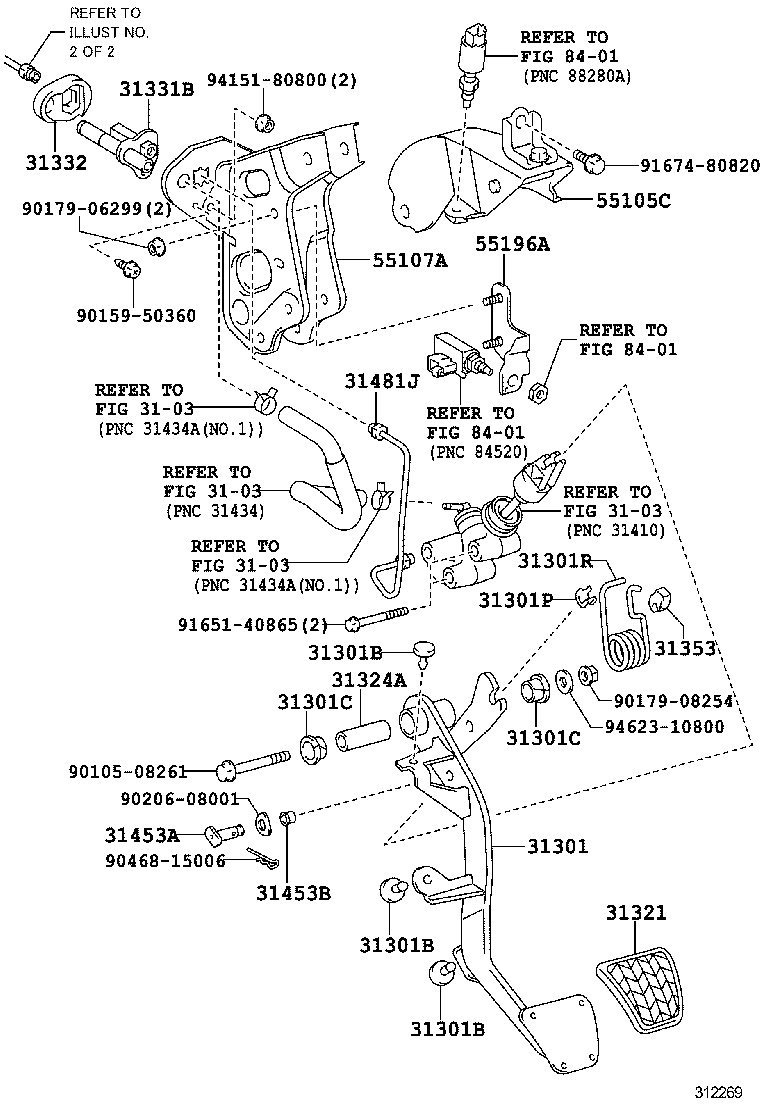

ILLUST NO. 1 OF 2(0908- )LHD..6F

 LAND CRUISER 150 |  CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 31301 - PEDAL SUB-ASSY, CLUTCH 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) 31321 - PAD, CLUTCH PEDAL 31324A - COLLAR, CLUTCH PEDAL SHAFT 31331B - WAY, CLUTCH PEDAL SUPPORT 31332 - GROMMET, CLUTCH PEDAL SUPPORT 31353 - HOLDER, CLUTCH PEDAL SPRING 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY 55105C - SUPPORT, PEDAL BRACKET CLUTCH WIRE 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL 55196A - BRACKET, CLUTCH START SWITCH MOUNTING ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
