TOYOTA LAND CRUISER 150 KDJ150L-GKFEYW / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

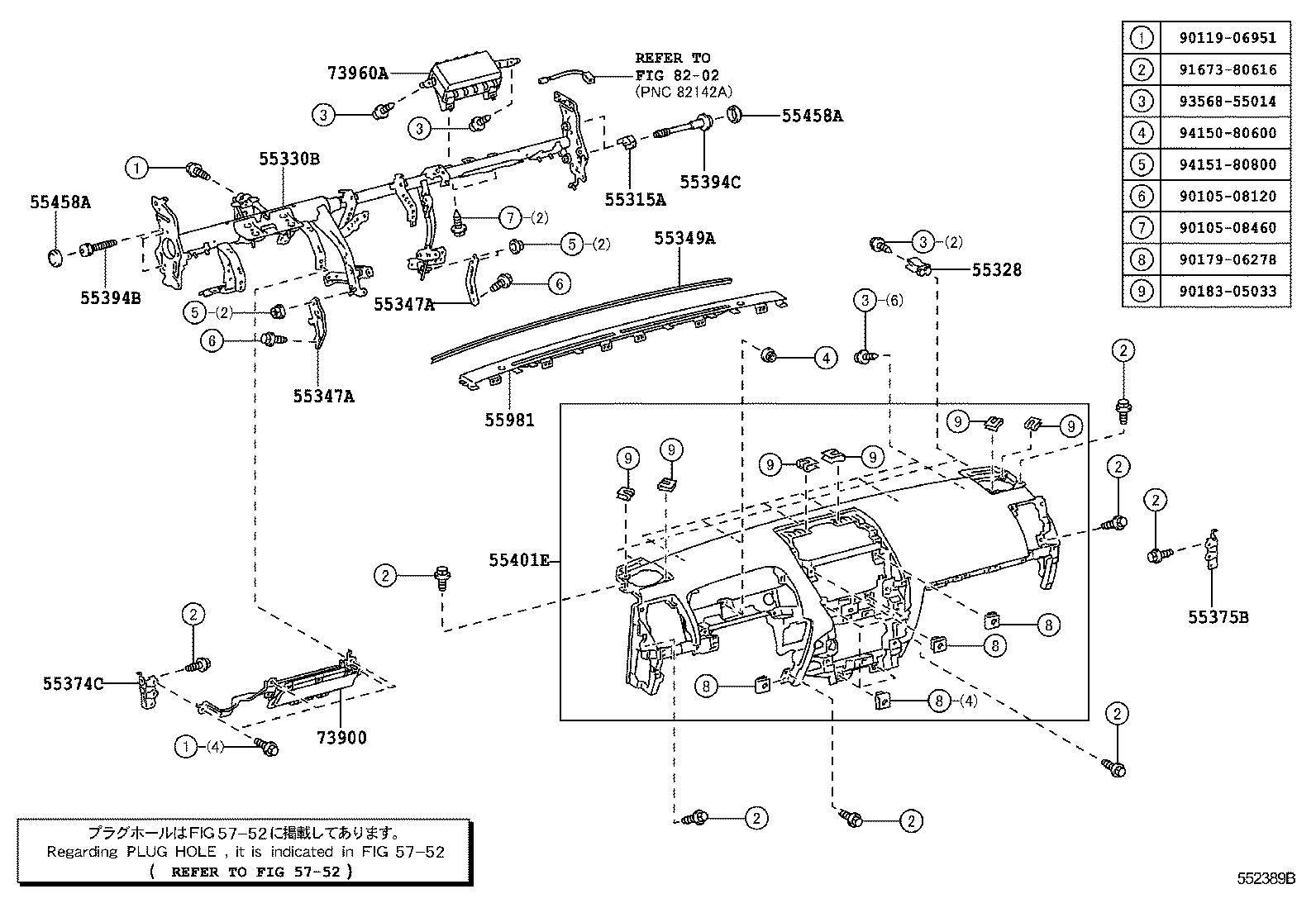

ILLUST NO. 1 OF 3(0908- )LHD

 LAND CRUISER 150 |  INSTRUMENT PANEL GLOVE COMPARTMENT 55315A - SPACER, INSTRUMENT PANEL, NO.1 55328 - PIN, INSTRUMENT PANEL, NO.1 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 55349A - CUSHION, INSTRUMENT PANEL 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 55394B - BOLT, INSTRUMENT PANEL 55394C - BOLT, INSTRUMENT PANEL 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY 55458A - CAP, INSTRUMENT PANEL SAFETY PAD 55458A - CAP, INSTRUMENT PANEL SAFETY PAD 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 ** Refer Fig 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
