TOYOTA LAND CRUISER 150 KDJ150L-GKAEYW / POWERTRAIN-CHASSIS / HEIGHT CONTROL AUTO LEVELER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEIGHT CONTROL AUTO LEVELER

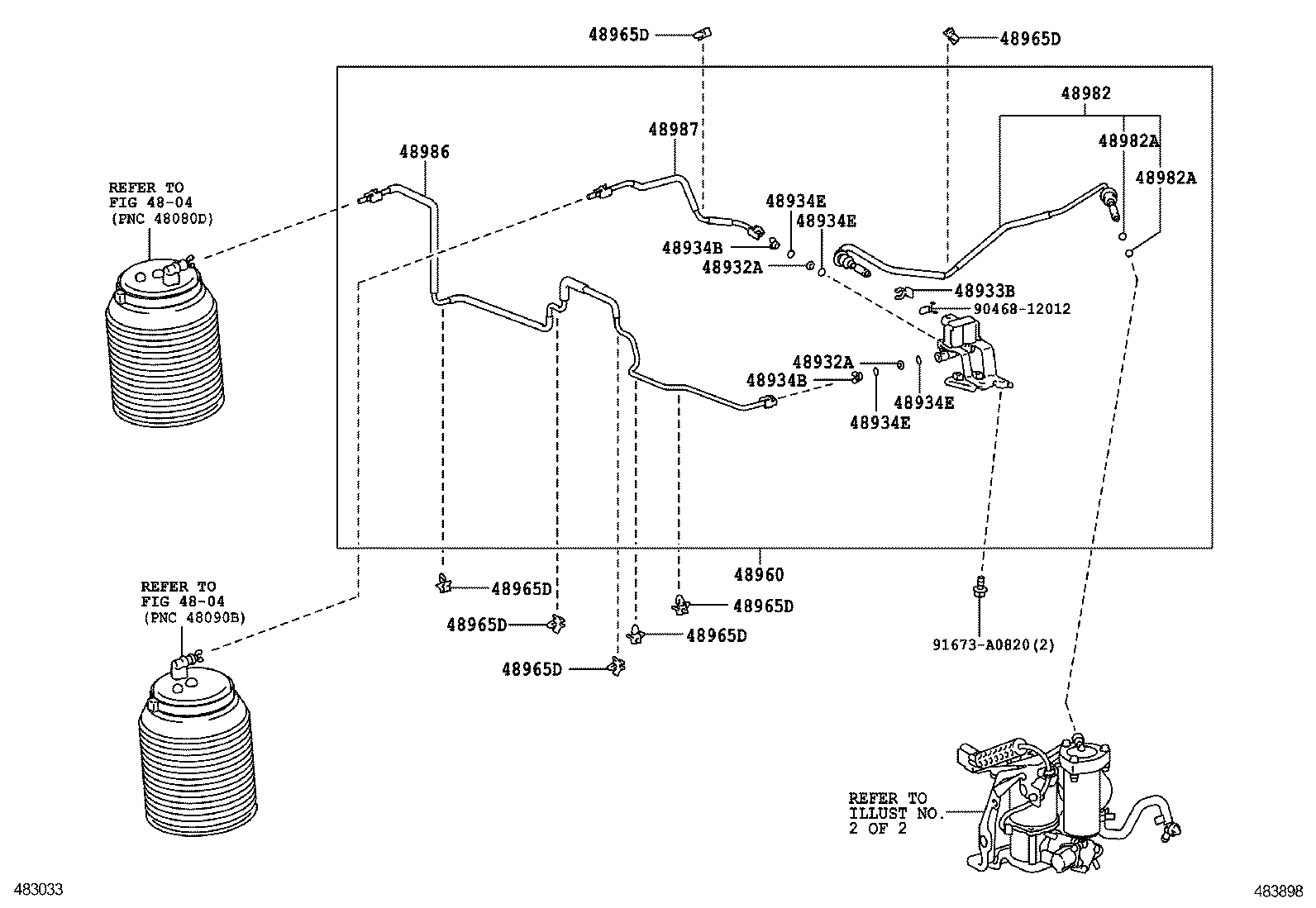

ILLUST NO. 1 OF 2(0908- )GRJ150,KDJ150

 LAND CRUISER 150 |  HEIGHT CONTROL AUTO LEVELER ** Refer Fig ** Refer Fig 48932A - PLATE, HEIGHT CONTROL TUBE 48932A - PLATE, HEIGHT CONTROL TUBE 48933B - HOLDER, REAR HEIGHT CONTROL AIR CONNECTOR CLIP 48934B - CONNECTOR, HEIGHT CONTROL TUBE 48934B - CONNECTOR, HEIGHT CONTROL TUBE 48934E - RING, O(FOR HEIGHT CONTROL TUBE CONNECTOR) 48934E - RING, O(FOR HEIGHT CONTROL TUBE CONNECTOR) 48934E - RING, O(FOR HEIGHT CONTROL TUBE CONNECTOR) 48934E - RING, O(FOR HEIGHT CONTROL TUBE CONNECTOR) 48960 - VALVE ASSY, HEIGHT CONTROL, NO.2 48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2 48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2 48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2 48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2 48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2 48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2 48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2 48982 - TUBE, HEIGHT CONTROL, NO.2 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) 48986 - TUBE, HEIGHT CONTROL, NO.6 48987 - TUBE, HEIGHT CONTROL, NO.7  ** Std Part  ** Std Part
