TOYOTA PRIUS ZVW30R-AHXEBQ / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DOOR PANEL GLASS

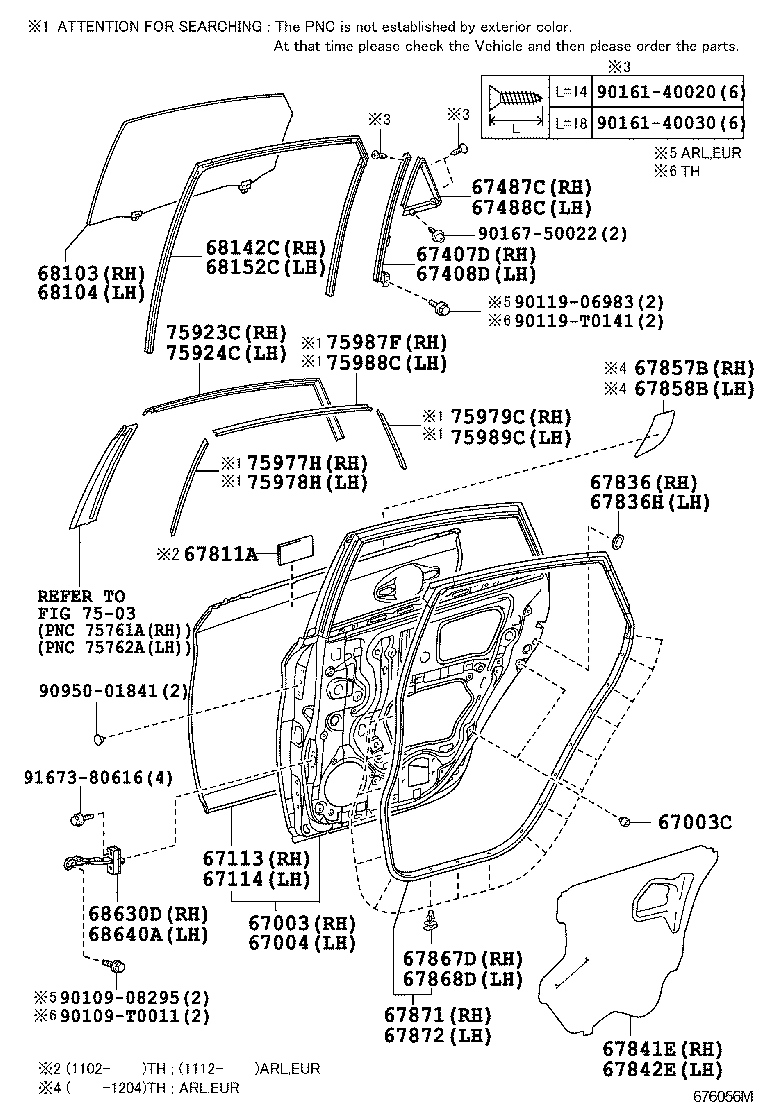

DOOR PANEL ILLUST NO. 1 OF 2(0904- )

 PRIUS |  REAR DOOR PANEL GLASS 67003 - PANEL SUB-ASSY, REAR DOOR, RH 67003C - CUSHION, REAR DOOR PANEL 67004 - PANEL SUB-ASSY, REAR DOOR, LH 67113 - PANEL, REAR DOOR, OUTER RH 67114 - PANEL, REAR DOOR, OUTER LH 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH 67487C - SEAL, REAR DOOR REAR GUIDE, RH 67488C - SEAL, REAR DOOR REAR GUIDE, LH 67811A - PAD, REAR DOOR SILENCER 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH 67841E - COVER, REAR DOOR SERVICE HOLE, RH 67842E - COVER, REAR DOOR SERVICE HOLE, LH 67857B - PROTECTOR, REAR DOOR PANEL, RH 67858B - PROTECTOR, REAR DOOR PANEL, LH 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH 67871 - WEATHERSTRIP, REAR DOOR, RH 67872 - WEATHERSTRIP, REAR DOOR, LH 68103 - GLASS SUB-ASSY, REAR DOOR, RH 68104 - GLASS SUB-ASSY, REAR DOOR, LH 68142C - RUN, REAR DOOR GLASS, RH 68152C - RUN, REAR DOOR GLASS, LH 68630D - CHECK ASSY, REAR DOOR, RH 68640A - CHECK ASSY, REAR DOOR, LH ** Refer Fig 75923C - TAPE, BLACK OUT, NO.2 RH 75924C - TAPE, BLACK OUT, NO.2 LH 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH 75979C - STRIPE, REAR DOOR, OUTSIDE UPPER RH 75987F - STRIPE, REAR DOOR, OUTSIDE, RH 75988C - STRIPE, REAR DOOR, OUTSIDE LH 75989C - STRIPE, REAR DOOR, OUTSIDE UPPER LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
