TOYOTA AURIS HYBRID UKP ZRE151R-DHFNPW / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

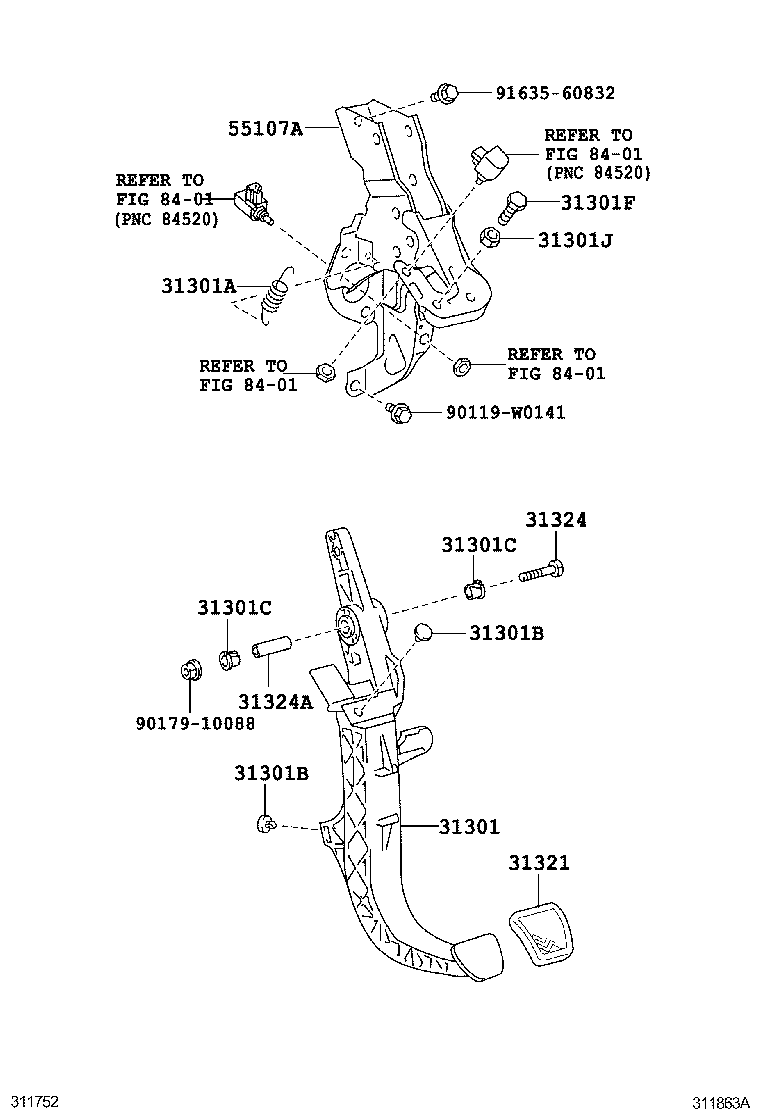

ILLUST NO. 1 OF 2(0702-1210)ZRE151..RHD..6F ; (0702- )RHD..5F,

 AURIS HYBRID UKP |  CLUTCH PEDAL FLEXIBLE HOSE 31301 - PEDAL SUB-ASSY, CLUTCH 31301A - SPRING(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) 31301J - NUT(FOR CLUTCH PEDAL STOPPER) 31321 - PAD, CLUTCH PEDAL 31324 - SHAFT, CLUTCH PEDAL 31324A - COLLAR, CLUTCH PEDAL SHAFT 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part
