FUEL TANK TUBE

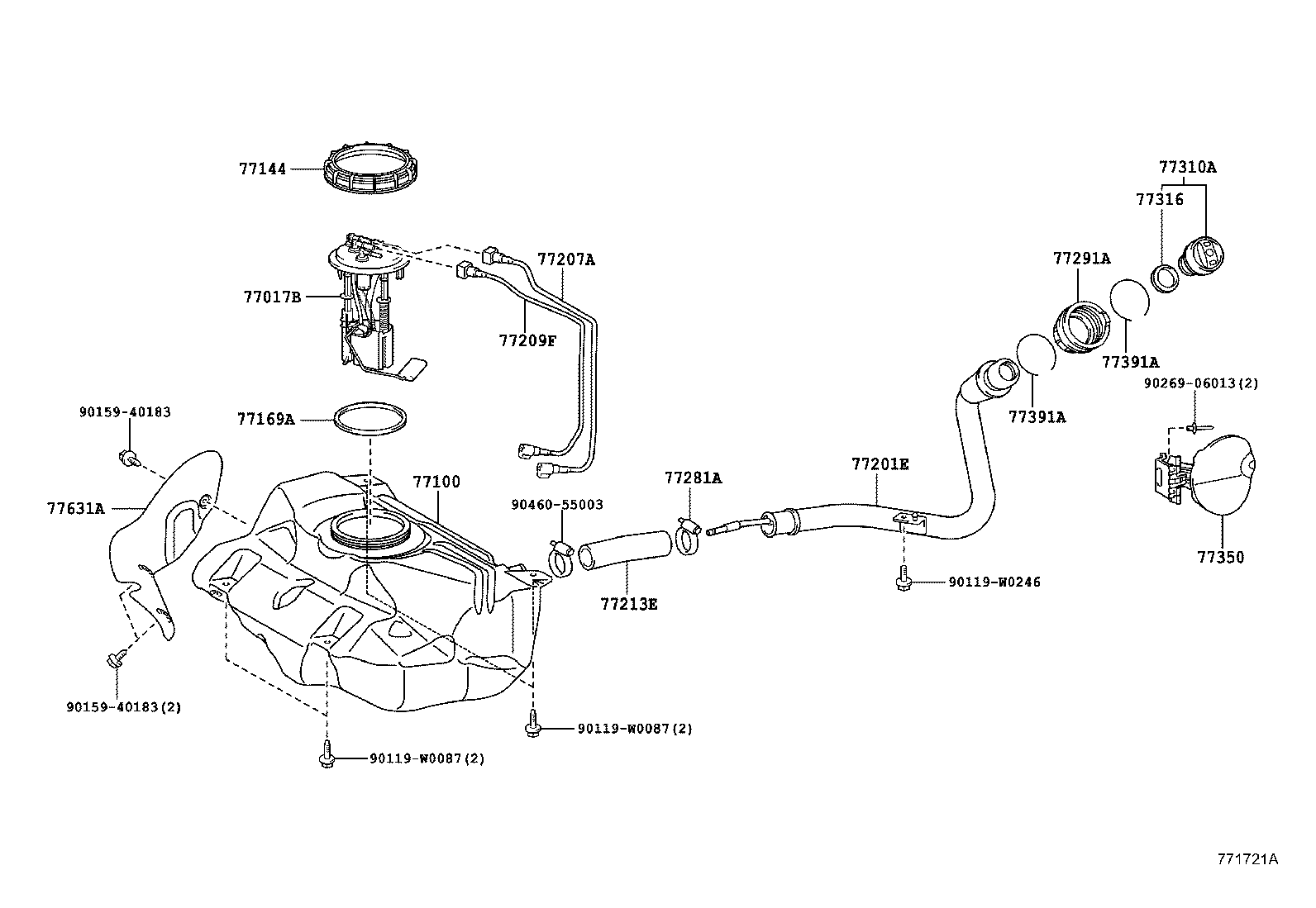

FUEL TANK ILLUST NO. 1 OF 2(0505- )WNB10

AYGO | FUEL TANK TUBE 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77207A - TUBE SUB-ASSY, FUEL RETURN 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77213E - HOSE, FUEL TANK TO FILLER PIPE 77281A - CLAMP, FUEL FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77391A - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77631A - PROTECTOR, FUEL TANK, LOWER CENTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
