TOYOTA DYNA WU422L-TKFTBV3 / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

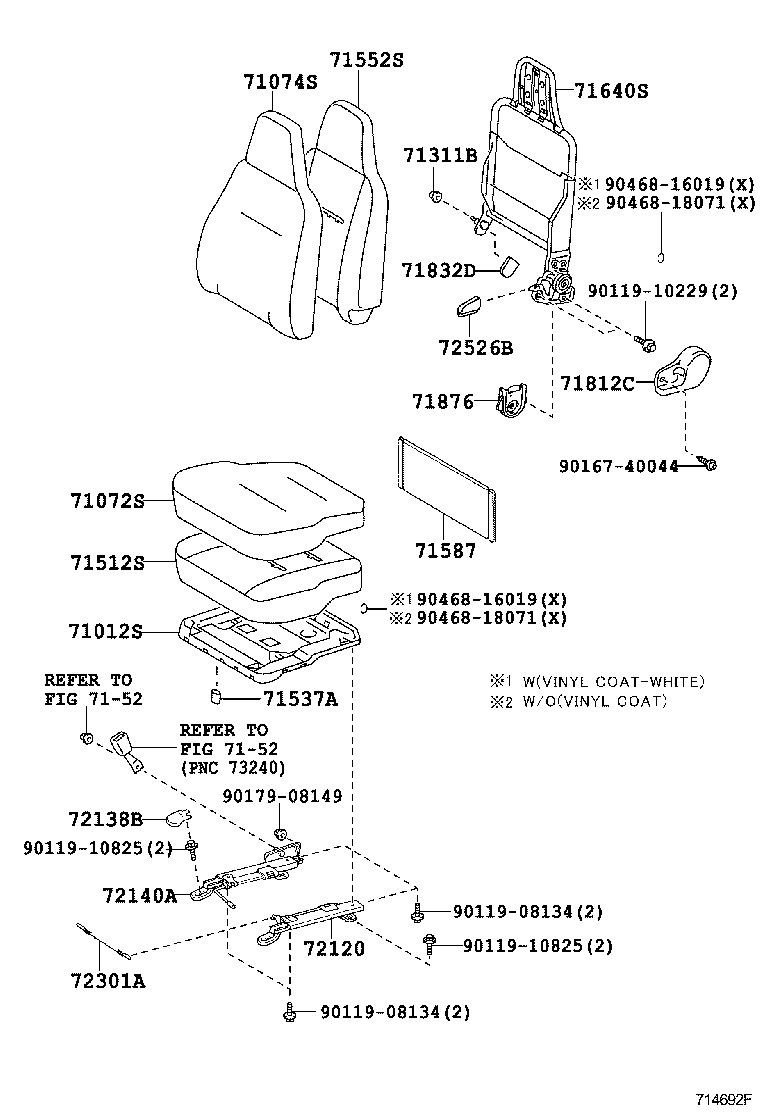

SEAT SEAT TRACK

DRIVER SEAT (0610- )XZU413,423..5F ; (0610- )WU41#,422

 DYNA |  SEAT SEAT TRACK 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71311B - BUSH (FOR FRONT SEAT HINGE PIN) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig 71537A - PROTECTOR, FRONT SEAT CUSHION 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71587 - PROTECTOR, FRONT SEAT BACK EDGE 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71812C - COVER, RECLINING ADJUSTER, LH 71832D - COVER, FRONT SEAT HINGE, LH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 72120 - TRACK ASSY, FRONT SEAT, OUTER LH 72138B - COVER, SEAT TRACK, LH 72140A - TRACK ASSY, FRONT SEAT,INNER LH 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
