TOYOTA LAND CRUISER 100 UZJ100L-GNAEKA / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

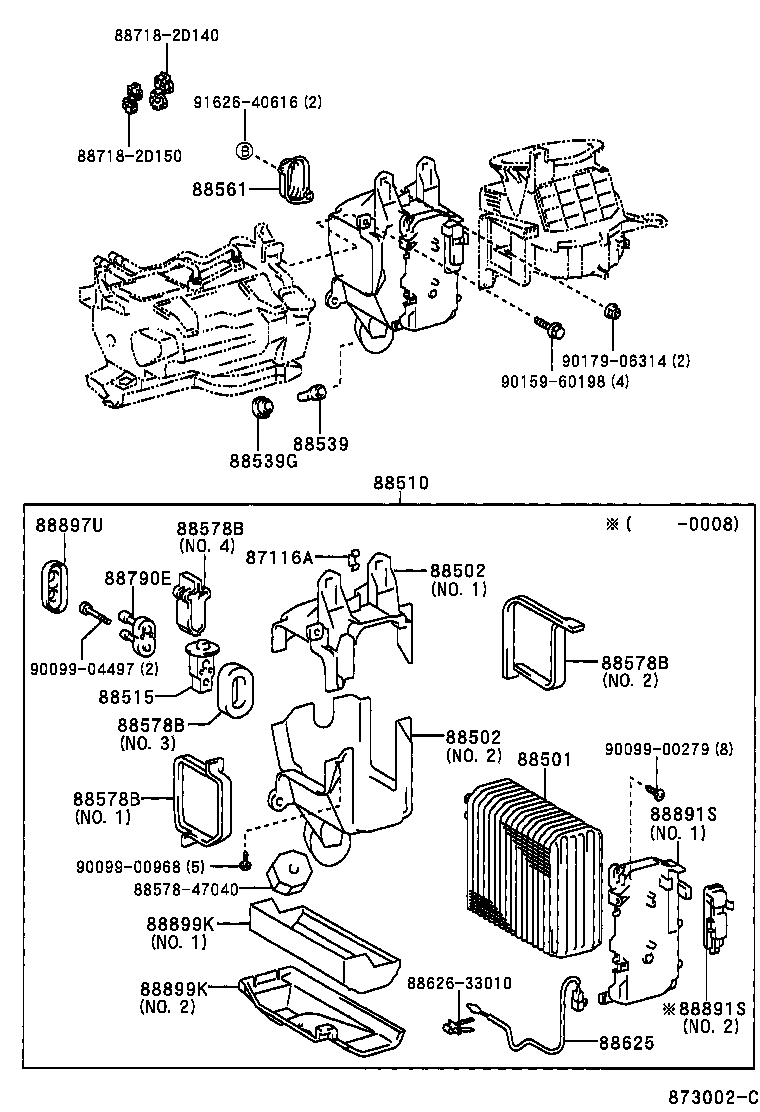

FRONT ILLUST NO. 1 OF 3(9801- )

 LAND CRUISER 100 |  HEATING AIR CONDITIONING COOLER UNIT 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88502 - CASE SUB-ASSY, COOLING UNIT 88502 - CASE SUB-ASSY, COOLING UNIT 88510 - UNIT ASSY, COOLER 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) 88561 - COVER, COOLER UNIT  ** Std Part 88578B - PACKING, COOLING UNIT, NO.1 88578B - PACKING, COOLING UNIT, NO.1 88578B - PACKING, COOLING UNIT, NO.1 88578B - PACKING, COOLING UNIT, NO.1 88625 - THERMISTOR, COOLER, NO.1  ** Std Part  ** Std Part  ** Std Part 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER 88891S - COVER, COOLER, NO.1 88891S - COVER, COOLER, NO.1 88897U - PIPE, ASPIRATOR 88899K - PLATE, COVER 88899K - PLATE, COVER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
