TOYOTA PICNIC AVENSIS VERSO ACM20R-ARSDKW / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

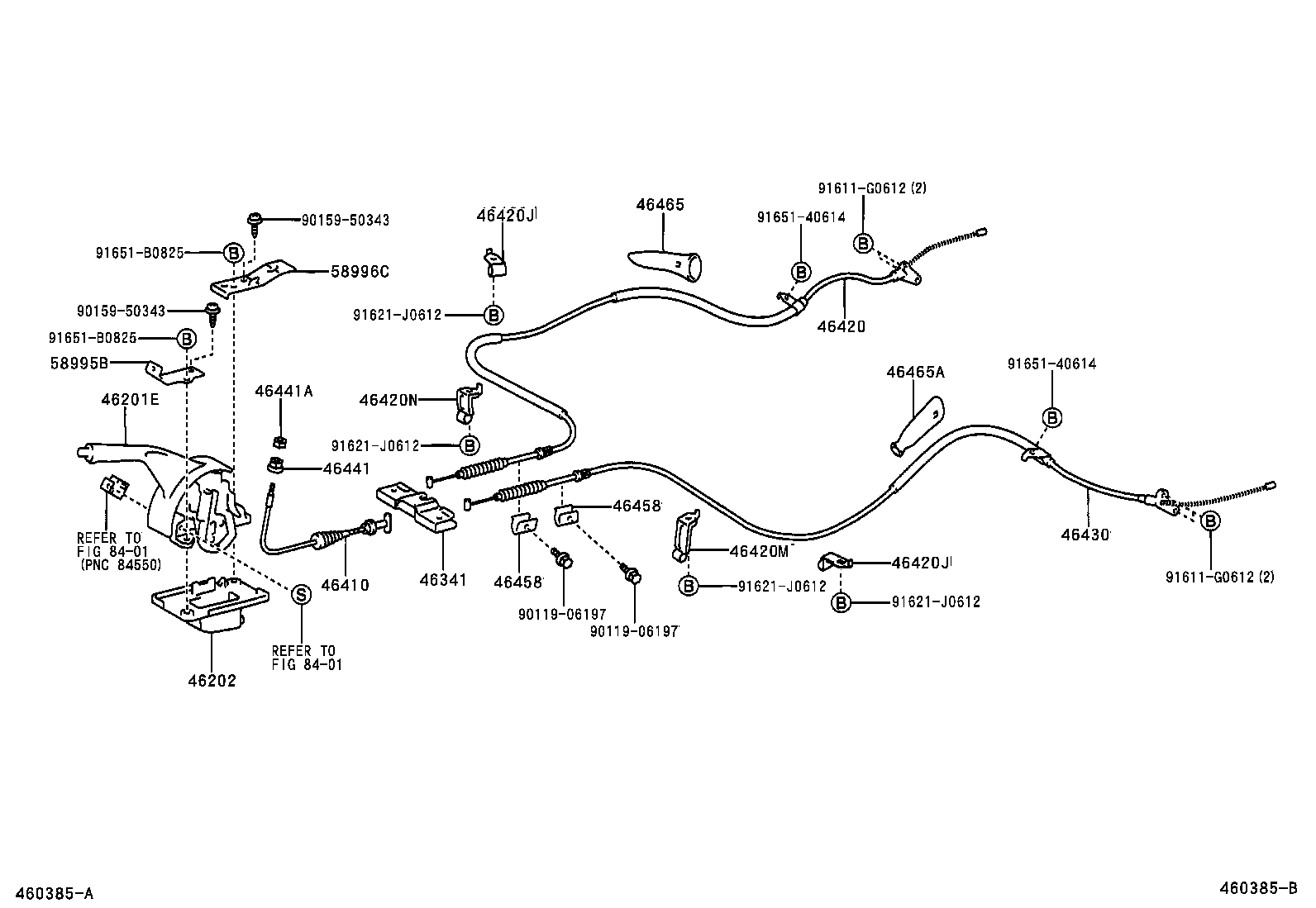

ILLUST NO. 1 OF 2(0105- )

 PICNIC AVENSIS VERSO |  PARKING BRAKE CABLE 46201E - LEVER SUB-ASSY, PARKING BRAKE 46202 - BOOT SUB-ASSY, PARKING BRAKE LEVER 46341 - EQUALIZER, PARKING BRAKE 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) 46420M - CLAMP, NO.6(FOR PARKING BRAKE CABLE) 46420N - CLAMP, NO.7(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46441 - NUT, WIRE ADJUSTING, NO.1 46441A - NUT, WIRE ADJUSTING, NO.2 46458 - RETAINER, CABLE 46458 - RETAINER, CABLE 46465 - GUIDE, PARKING BRAKE CABLE, RH 46465A - GUIDE, PARKING BRAKE CABLE, LH 58995B - BRACKET, CONSOLE BOX MOUNTING, NO.1 58996C - BRACKET, CONSOLE BOX MOUNTING, NO.2 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
