TOYOTA PICNIC AVENSIS VERSO ACM20R-ARSDKW / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

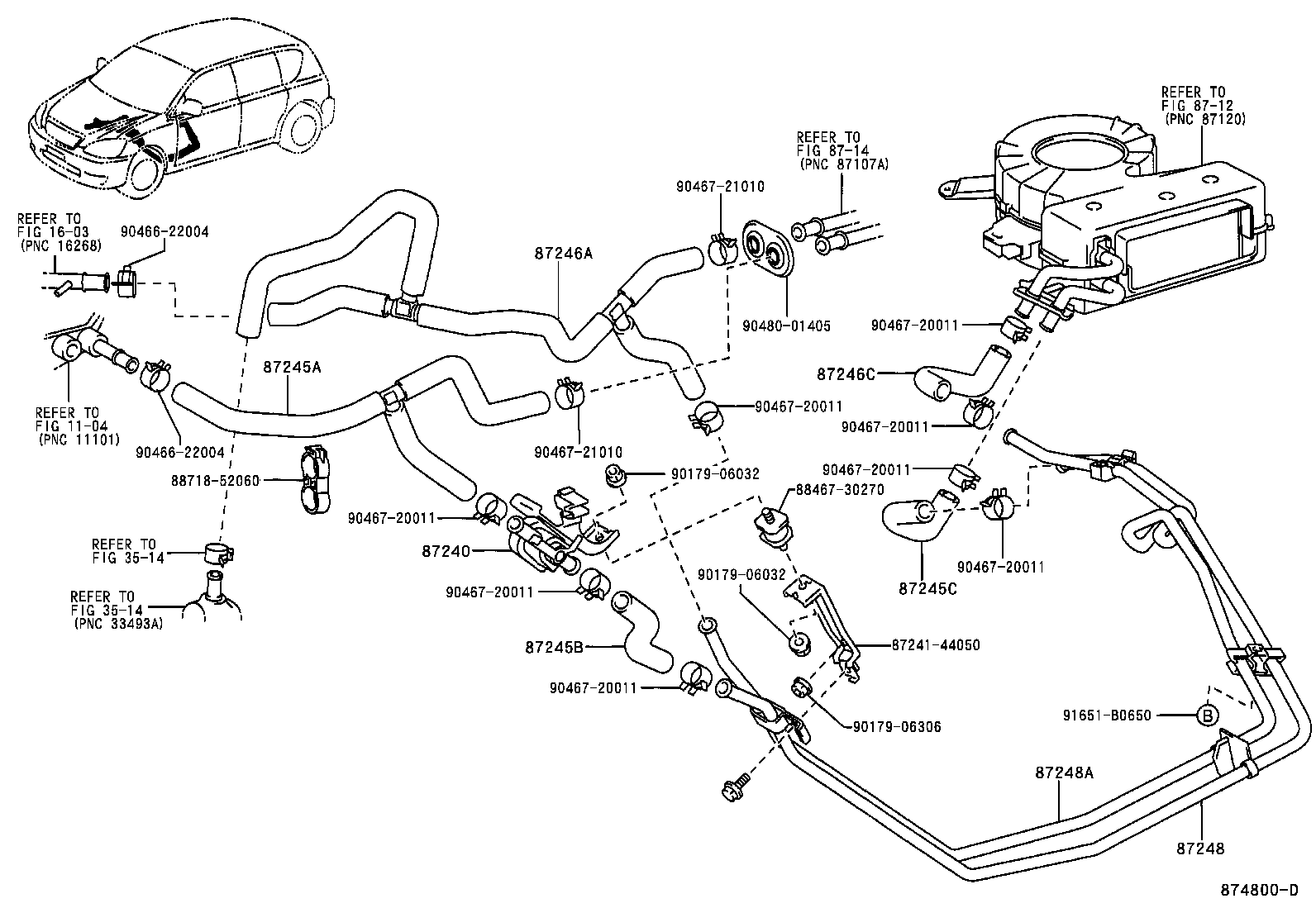

HEATING AIR CONDITIONING WATER PIPING

W(REAR HEATER) (0105-0310)RHD..ATM..EUR

PICNIC AVENSIS VERSO | HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87240 - VALVE ASSY, HEATER WATER ** Std Part 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87245C - HOSE, HEATER WATER ,INLET C 87246A - HOSE, HEATER WATER, OUTLET A 87246C - HOSE, HEATER WATER, OUTLET C 87248 - PIPE SUB-ASSY, WATER 87248A - PIPE, HEATER WATER INLET, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
