TOYOTA AVENSIS CDT220L-AEMEYW / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

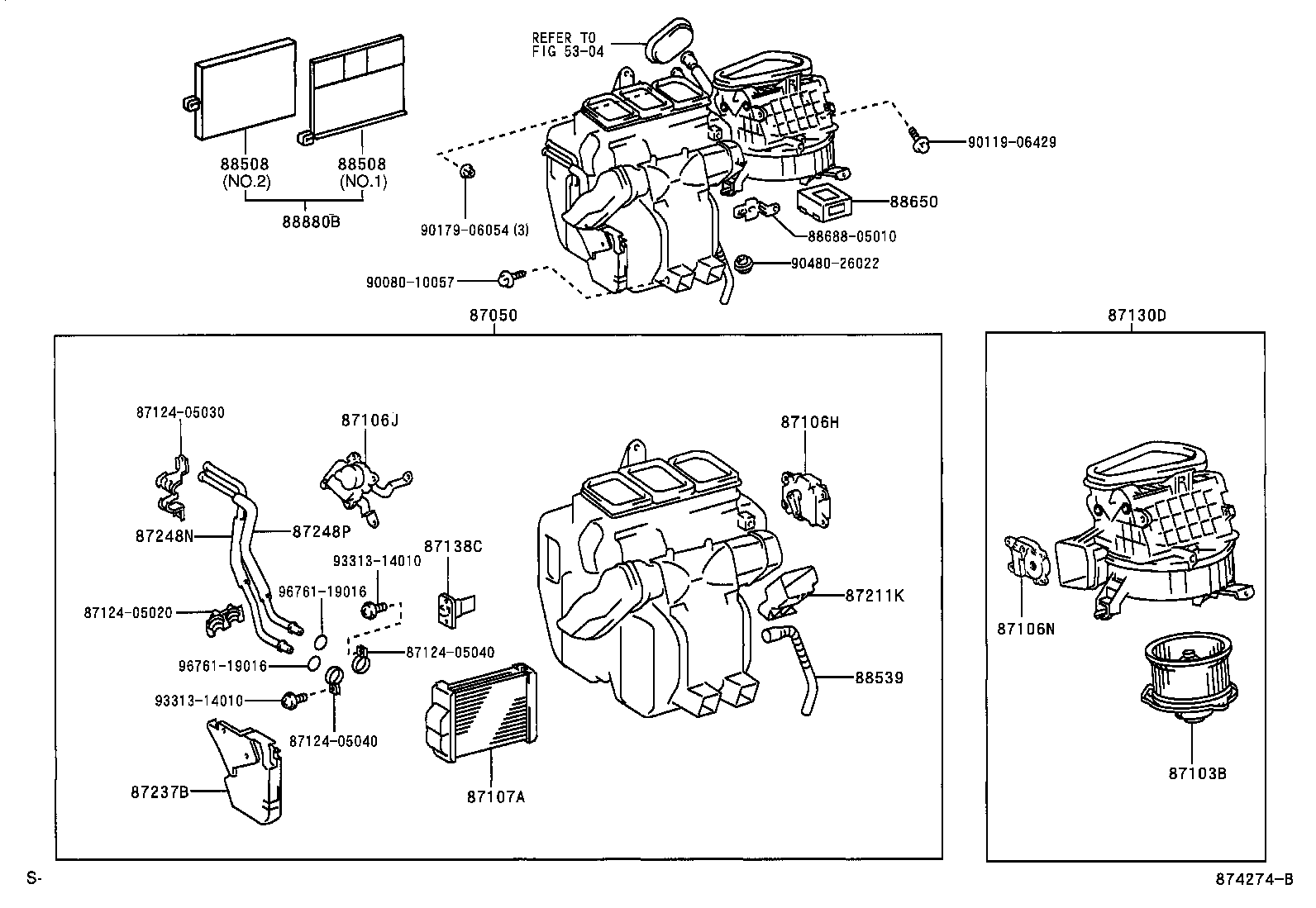

ILLUST NO. 1 OF 2(0007- )LHD

 AVENSIS |  HEATING AIR CONDITIONING COOLER UNIT ** Refer Fig 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) 87107A - UNIT SUB-ASSY, HEATER RADIATOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part 87130D - BLOWER ASSY 87138C - RESISTOR, BLOWER 87211K - DUCT, AIR 87237B - COVER, HEATER PIPING 87248N - PIPE, HEATER WATER INLET 87248P - PIPE, HEATER WATER OUTLET 88508 - FILTER SUB-ASSY, CLEAN AIR 88508 - FILTER SUB-ASSY, CLEAN AIR 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88650 - AMPLIFIER ASSY, COOLER STABILIZER  ** Std Part 88880B - FILTER ASSY, CLEAN AIR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
