TOYOTA YARIS JPP NCP10R-AGPGKW / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VALVE BODY OIL STRAINER ATM

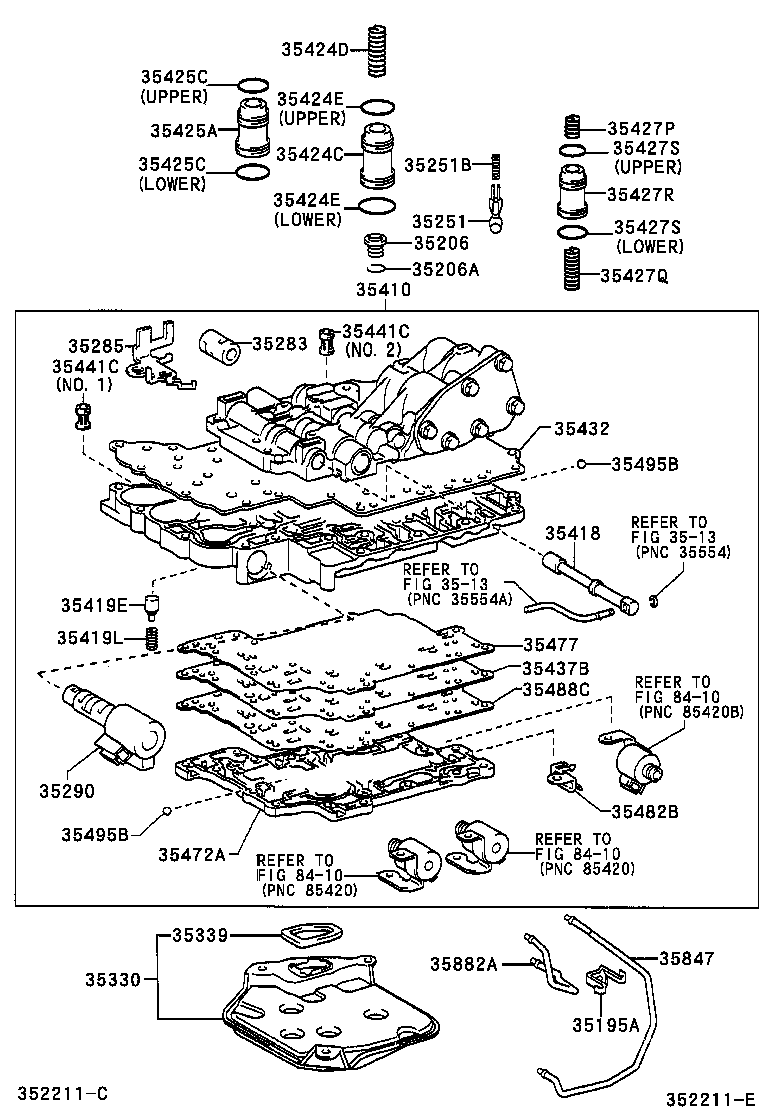

U441E ILLUST NO. 1 OF 4(9908- )JPP..4FC

 YARIS JPP |  VALVE BODY OIL STRAINER ATM ** Refer Fig ** Refer Fig 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 35206 - SPRING SUB-ASSY, C-1 ACCUMULATOR 35206A - RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING) 35251 - BODY, CHECK BALL 35251B - SPRING, COMPRESSION(FOR CHECK BALL BODY) 35283 - SLEEVE, LOCK UP CONTROL SOLENOID 35285 - PLATE, SOLENOID LOCK 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL 35330 - STRAINER ASSY, VALVE BODY OIL 35339 - GASKET, OIL STRAINER 35410 - BODY ASSY, TRANSMISSION VALVE 35418 - VALVE, MANUAL 35419E - VALVE, CHECK, NO.3 35419L - SPRING, COMPRESSION (FOR CHECK VALVE NO.3) 35424C - PISTON, C-1 ACCUMULATOR 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35425A - PISTON, C-2 ACCUMULATOR 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35427P - SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON) 35427Q - SPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON) 35427R - PISTON B-1 ACCUMULATOR 35427S - RING, O(FOR B-1 ACCUMULATOR PISTON) 35427S - RING, O(FOR B-1 ACCUMULATOR PISTON) 35432 - PLATE, VALVE BODY, NO.1 35437B - PLATE, VALVE BODY COVER 35441C - STRAINER, SOLENOID OIL 35441C - STRAINER, SOLENOID OIL 35472A - COVER, LOWER VALVE BODY 35477 - GASKET, VALVE BODY COVER 35482B - CLAMP, TEMPERATURE SENSOR 35488C - GASKET, VALVE BODY COVER, NO.2 35495B - BALL, CHECK, NO.1 35495B - BALL, CHECK, NO.1 35847 - TUBE, TRANSMISSION LUBE APPLY 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY ** Refer Fig ** Refer Fig ** Refer Fig
