TOYOTA SUPRA JZA80L-AJPVFA / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

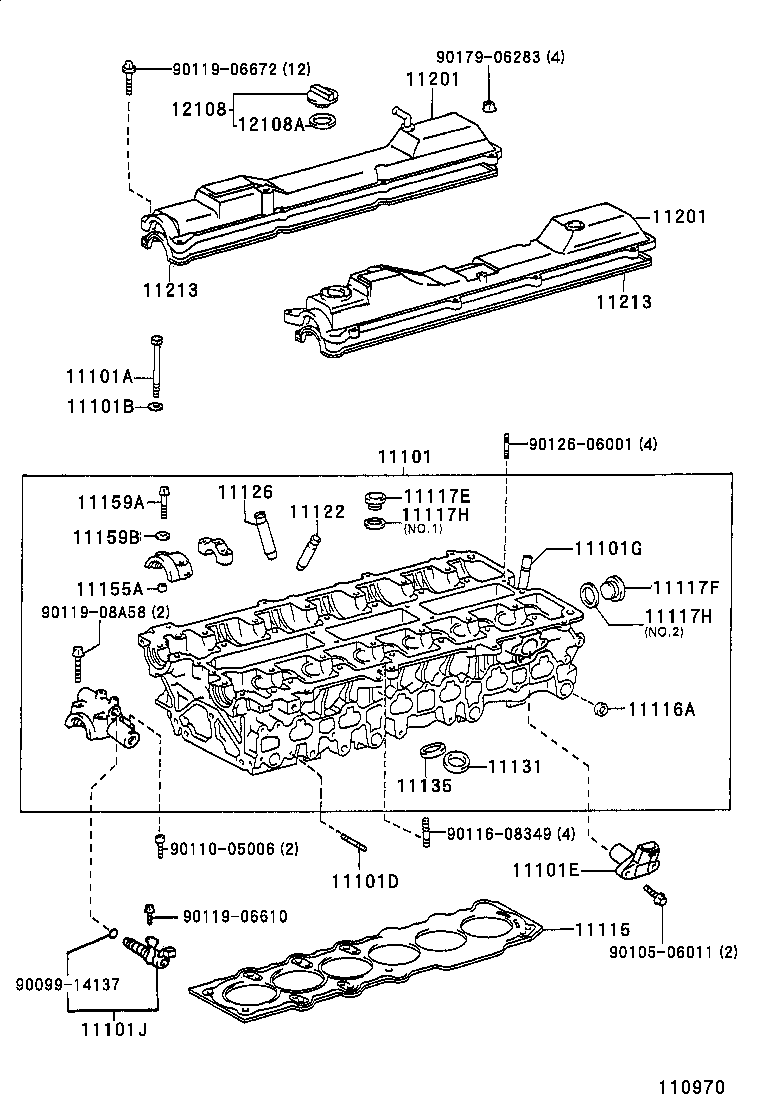

CYLINDER HEAD

(9709- )2JZGE

SUPRA | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101D - BOLT, STUD(FOR WATER OUTLET) 11101E - SENSOR, CAM POSITION 11101G - UNION(FOR CYLINDER HEAD) 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL 11115 - GASKET, CYLINDER HEAD 11116A - PLUG, TIGHT, NO.1 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 11117H - GASKET(FOR WATER HOLE) 11117H - GASKET(FOR WATER HOLE) 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11155A - PIN, RING W/HEAD 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201 - COVER SUB-ASSY, CYLINDER HEAD 11213 - GASKET, CYLINDER HEAD COVER 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
