TOYOTA SUPRA JZA80L-AJPVFA / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

VALVE BODY OIL STRAINER ATM

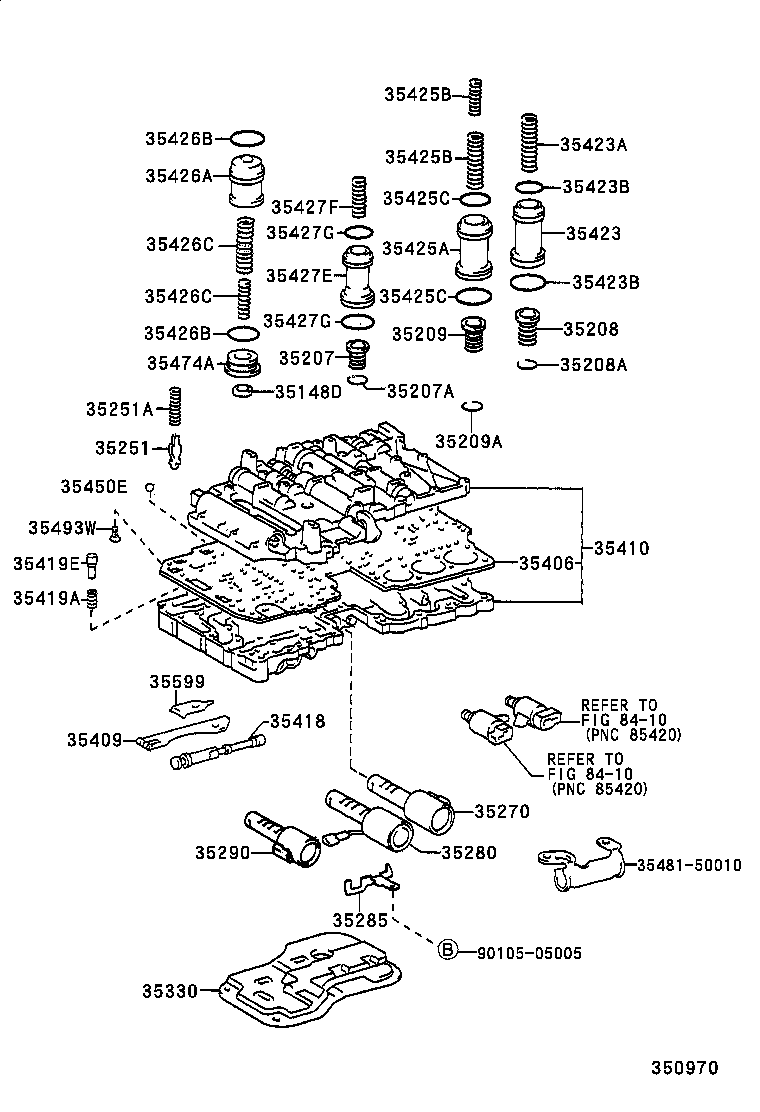

A340E ILLUST NO. 1 OF 4(9709- )TWC

SUPRA | VALVE BODY OIL STRAINER ATM 35148D - GASKET (FOR C-O ACCUMULATOR PISTON) 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) 35251 - BODY, CHECK BALL 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) 35270 - SOLENOID ASSY, SHIFT CONTROL 35280 - SOLENOID ASSY, LOCK UP CONTROL 35285 - PLATE, SOLENOID LOCK 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL 35330 - STRAINER ASSY, VALVE BODY OIL 35406 - PLATE SUB-ASSY, VALVE BODY 35409 - SPRING SUB-ASSY, MANUAL DETENT 35410 - BODY ASSY, TRANSMISSION VALVE 35418 - VALVE, MANUAL 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) 35419E - VALVE, CHECK, NO.3 35423 - PISTON, B-2 ACCUMULATOR 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35425A - PISTON, C-2 ACCUMULATOR 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35426A - PISTON, C-0 ACCUMULATOR 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) 35427E - PISTON, B-0 ACCUMULATOR 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) 35450E - BALL (FOR UPPER VALVE BODY) 35474A - COVER, ACCUMULATOR ** Std Part 35493W - SEAT, VALVE BODY 35599 - COVER, MANUAL DETENT SPRING ** Refer Fig ** Refer Fig ** Std Part
