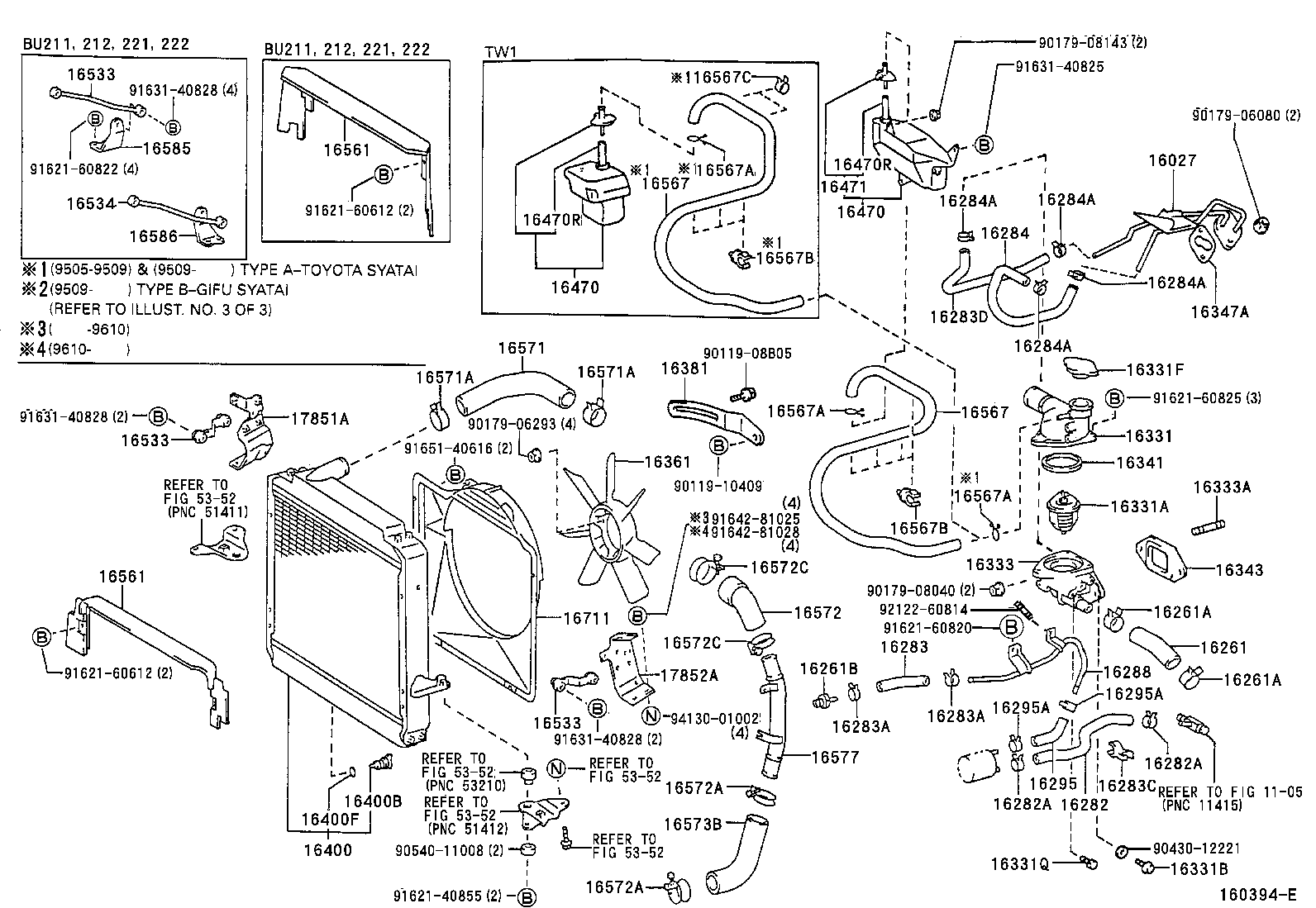

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 3(9505- )15BF,15BFT

 DYNA200 |  RADIATOR WATER OUTLET ** Refer Fig 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261B - UNION(FOR WATER BY-PASS HOSE) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16283D - HOSE, WATER BY-PASS, NO.6 16284 - HOSE, TURBO WATER, NO.1 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16288 - PIPE, WATER BY-PASS, NO.4 16295 - HOSE, WATER BY-PASS, NO.7 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16331 - OUTLET, WATER 16331A - THERMOSTAT 16331B - PLUG(FOR WATER OUTLET) 16331F - CAP SUB-ASSY(FOR WATER OUTLET) 16331Q - PLUG(FOR WATER OUTLET) 16333 - HOUSING, WATER OUTLET 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) 16341 - GASKET, WATER OUTLET 16343 - GASKET, WATER OUTLET HOUSING 16347A - GASKET(FOR TURBO WATER PIPE) 16361 - FAN 16381 - BAR, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16470 - TANK ASSY, RADIATOR RESERVE 16470 - TANK ASSY, RADIATOR RESERVE 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16533 - SUPPORT, RADIATOR, UPPER 16533 - SUPPORT, RADIATOR, UPPER 16533 - SUPPORT, RADIATOR, UPPER 16534 - SUPPORT, RADIATOR, NO.2 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16567 - HOSE(FOR RADIATOR RESERVE TANK) 16567 - HOSE(FOR RADIATOR RESERVE TANK) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) 16573B - HOSE, RADIATOR, NO.3 16577 - PIPE, RADIATOR, NO.7 16585 - BRACKET, RADIATOR, NO.3 16586 - BRACKET, RADIATOR, NO.4 16711 - SHROUD, FAN 17851A - BRACKET, RADIATOR SUPPORT, NO.1 17852A - BRACKET, RADIATOR SUPPORT, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
