TOYOTA AVENSIS AT221L-AEMNKW / BODY / LUGGAGE COMPARTMENT DOOR LOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

LUGGAGE COMPARTMENT DOOR LOCK

(9710- )SED

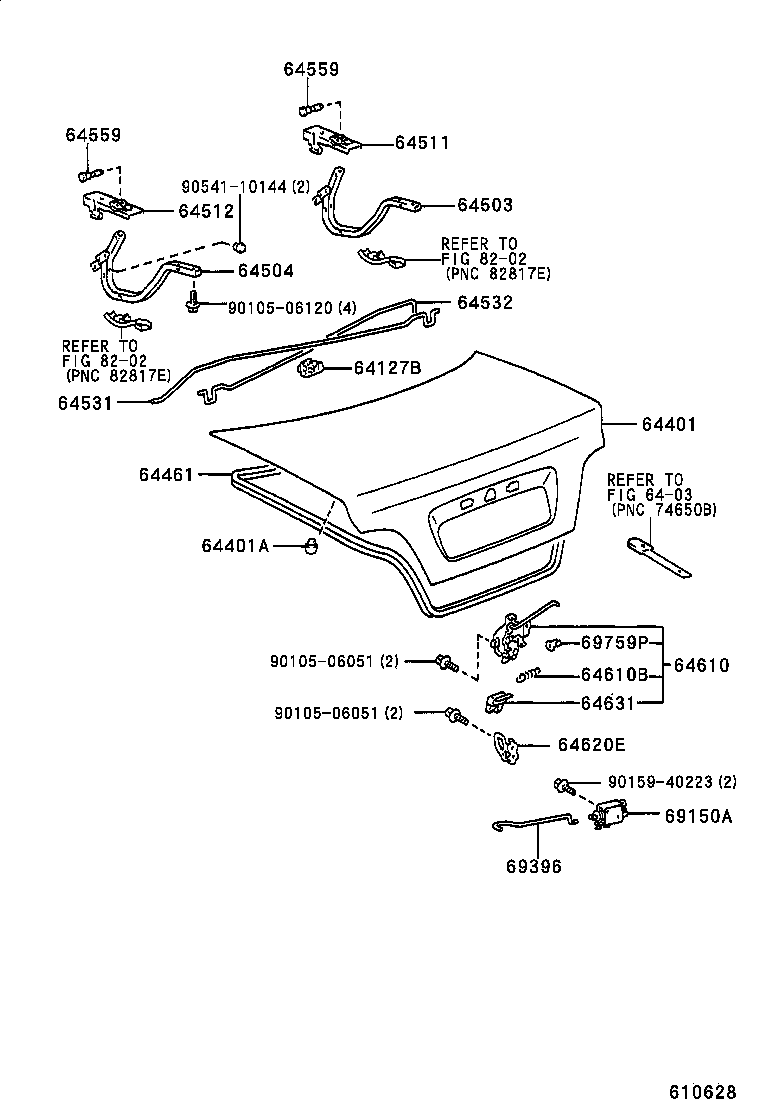

 AVENSIS |  LUGGAGE COMPARTMENT DOOR LOCK ** Refer Fig 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH 64559 - PIN, LUGGAGE DOOR HINGE 64559 - PIN, LUGGAGE DOOR HINGE 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR 64610B - SPRING, TENSION(FOR LOCK) 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR 64631 - PROTECTOR, LUGGAGE DOOR LOCK 69150A - ACTUATOR ASSY, BACK DOOR LOCK 69396 - ROD, LUGGAGE COMPARTMENT DOOR LOCK OPENING, NO.2 69759P - SNAP, DOOR LOCK CONTROL LINK ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
