TOYOTA STARLET EP91L-AHHNKW / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

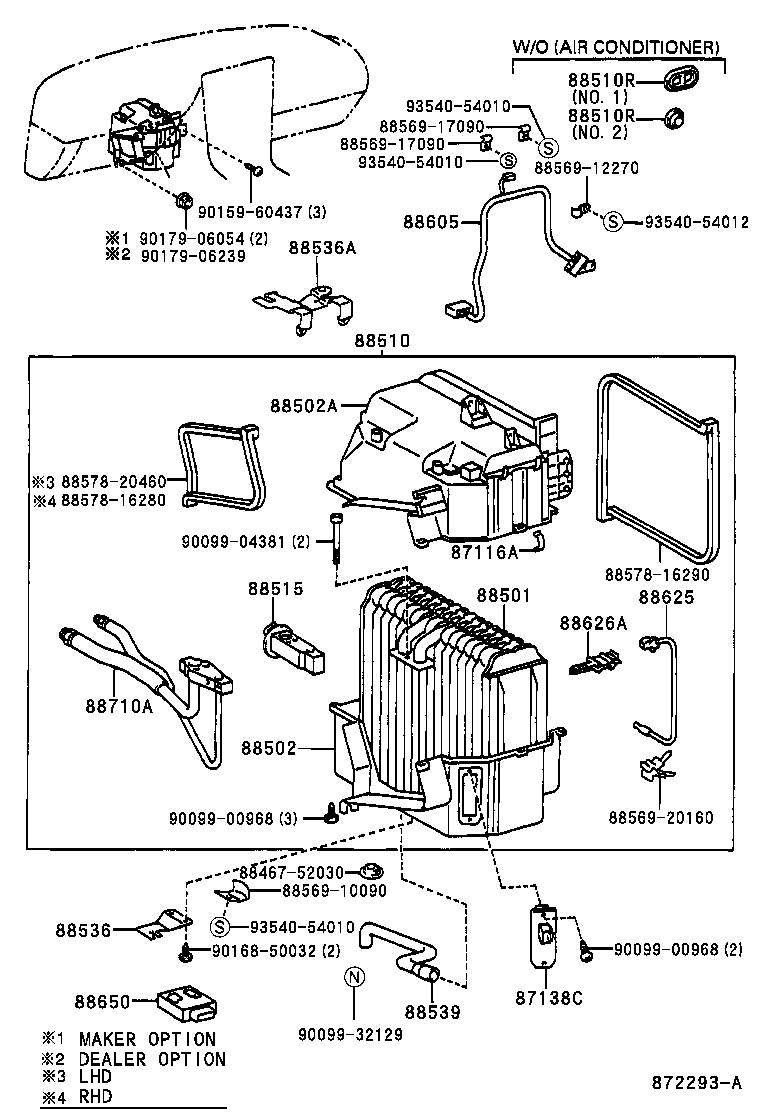

ILLUST NO. 1 OF 2(9601- )

 STARLET |  HEATING AIR CONDITIONING COOLER UNIT 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) 87138C - RESISTOR, BLOWER  ** Std Part 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88502 - CASE SUB-ASSY, COOLING UNIT 88502A - CASE SUB-ASSY, COOLING UNIT 88510 - UNIT ASSY, COOLER 88510R - GROMMET (FOR COOLER UNIT) 88510R - GROMMET (FOR COOLER UNIT) 88515 - VALVE, COOLER EXPANSION 88536 - BRACKET, COOLING UNIT, NO.1 88536A - BRACKET, COOLING UNIT, NO.2 88539 - HOSE, COOLER UNIT DRAIN, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 88625 - THERMISTOR, COOLER, NO.1 88626A - HOLDER, THERMISTOR 88650 - AMPLIFIER ASSY, COOLER STABILIZER 88710A - TUBE ASSY, AIRCONDITIONER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
