TOYOTA STARLET EP91L-AHHNKW / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

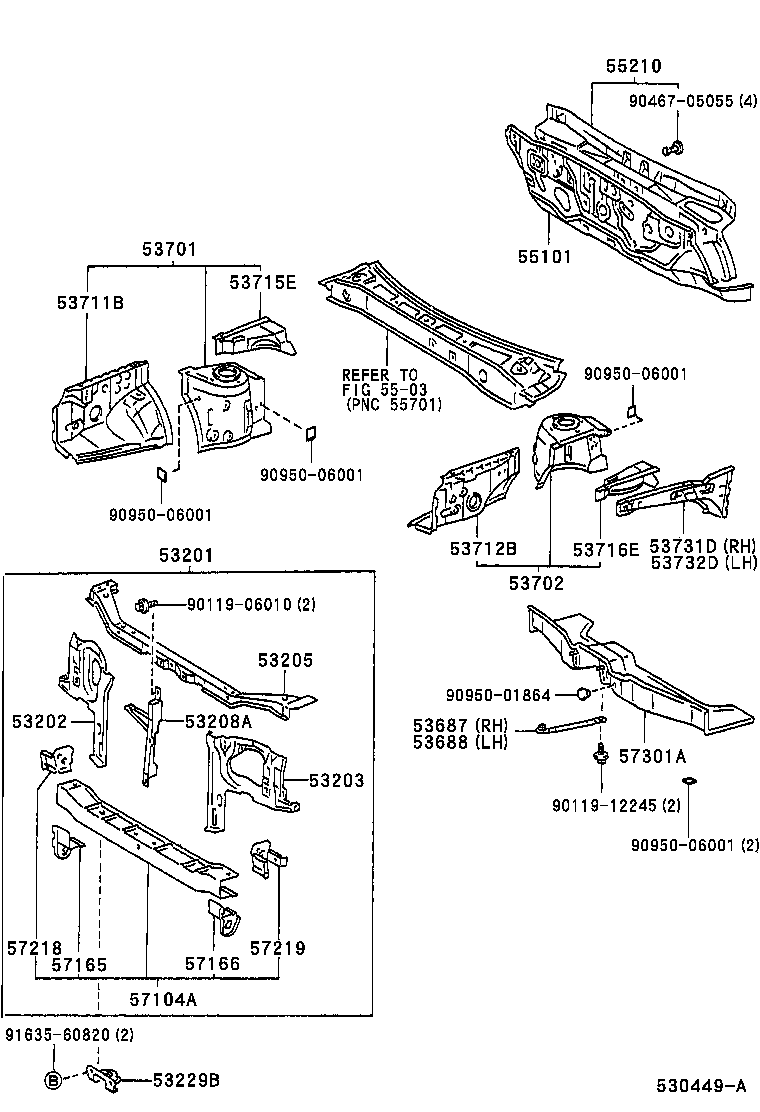

FRONT FENDER APRON DASH PANEL

(9601- )

 STARLET |  FRONT FENDER APRON DASH PANEL 53201 - SUPPORT SUB-ASSY, RADIATOR 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53229B - BRACKET, RADIATOR MOUNTING, LOWER NO.2 53687 - BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH 53688 - BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53715E - EXTENSION, FRONT FENDER APRON, REAR RH 53716E - EXTENSION, FRONT FENDER APRON, REAR LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH ** Refer Fig 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 57104A - MEMBER SUB-ASSY, FRONT CROSS 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
