TOYOTA SUPRA JZA80R-AJPVZW / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

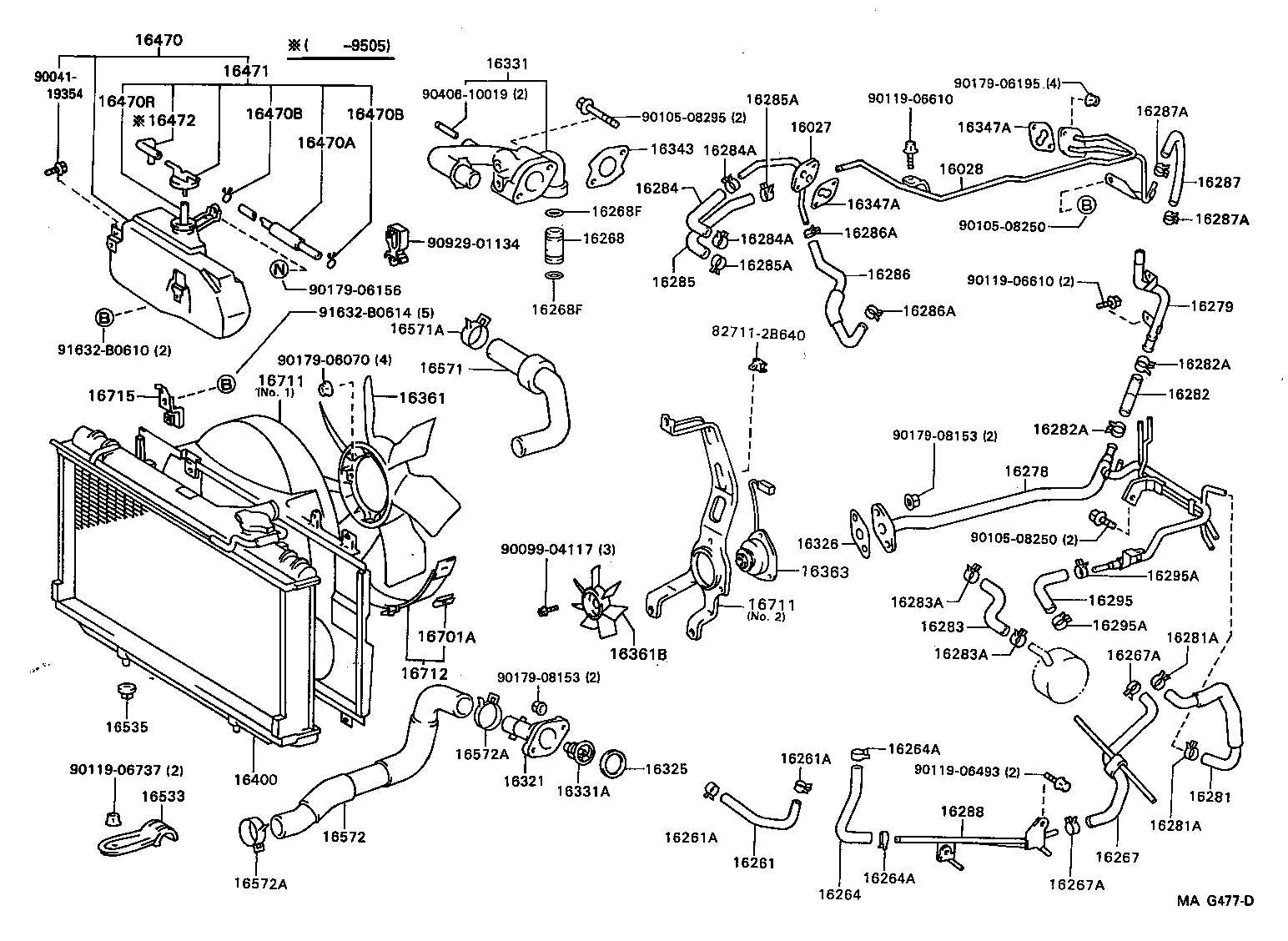

ILLUST NO. 1 OF 2(9305- )2JZGTE

 SUPRA |  RADIATOR WATER OUTLET 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16268 - PIPE, WATER BY-PASS, NO.1 16268F - RING, O(FOR WATER BY-PASS PIPE) 16268F - RING, O(FOR WATER BY-PASS PIPE) 16278 - PIPE, WATER BY-PASS, NO.2 16279 - PIPE, WATER BY-PASS, NO.3 16281 - HOSE, WATER BY-PASS, NO.4 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16284 - HOSE, TURBO WATER, NO.1 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16285 - HOSE, TURBO WATER, NO.2 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16286 - HOSE, TURBO WATER, NO.3 16286A - CLIP(FOR TURBO WATER HOSE NO.3) 16286A - CLIP(FOR TURBO WATER HOSE NO.3) 16287 - HOSE, TURBO WATER, NO.4 16287A - CLIP(FOR TURBO WATER HOSE NO.4) 16287A - CLIP(FOR TURBO WATER HOSE NO.4) 16288 - PIPE, WATER BY-PASS, NO.4 16295 - HOSE, WATER BY-PASS, NO.7 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16321 - INLET, WATER 16325 - GASKET, WATER INLET HOUSING, NO.1 16326 - GASKET, WATER INLET HOUSING, NO.2 16331 - OUTLET, WATER 16331A - THERMOSTAT 16343 - GASKET, WATER OUTLET HOUSING 16347A - GASKET(FOR TURBO WATER PIPE) 16347A - GASKET(FOR TURBO WATER PIPE) 16361 - FAN 16361B - FAN, NO.2 16363 - MOTOR, COOLING FAN 16400 - RADIATOR ASSY 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16701A - CLIP(FOR FAN SHROUD) 16711 - SHROUD, FAN 16711 - SHROUD, FAN 16712 - SHROUD, FAN, NO.2 16715 - BRACKET, FAN SHROUD  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
